Audio Assembly Replacement

  1. Remove the center fascia panel (See CENTER FASCIA PANEL REPLACEMENT ).
  2. Loosen the screws.
  3. Disconnect the audio connector and antenna cable, then remove the audio assembly (A).

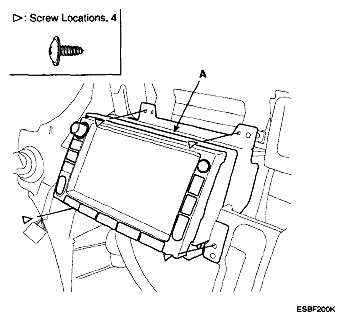

    Fig 1: Identifying Audio Assembly
    G04881155Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
