Monitor SCANTOOL Data

  1. Ignition "ON" & Engine "OFF".
  2. Connect Scan tool and clear the DTCs.
  3. If the DTCs are retrieved again, monitor "CURRENT DATA" to check No. of Learnt key, PCM and KEY status.

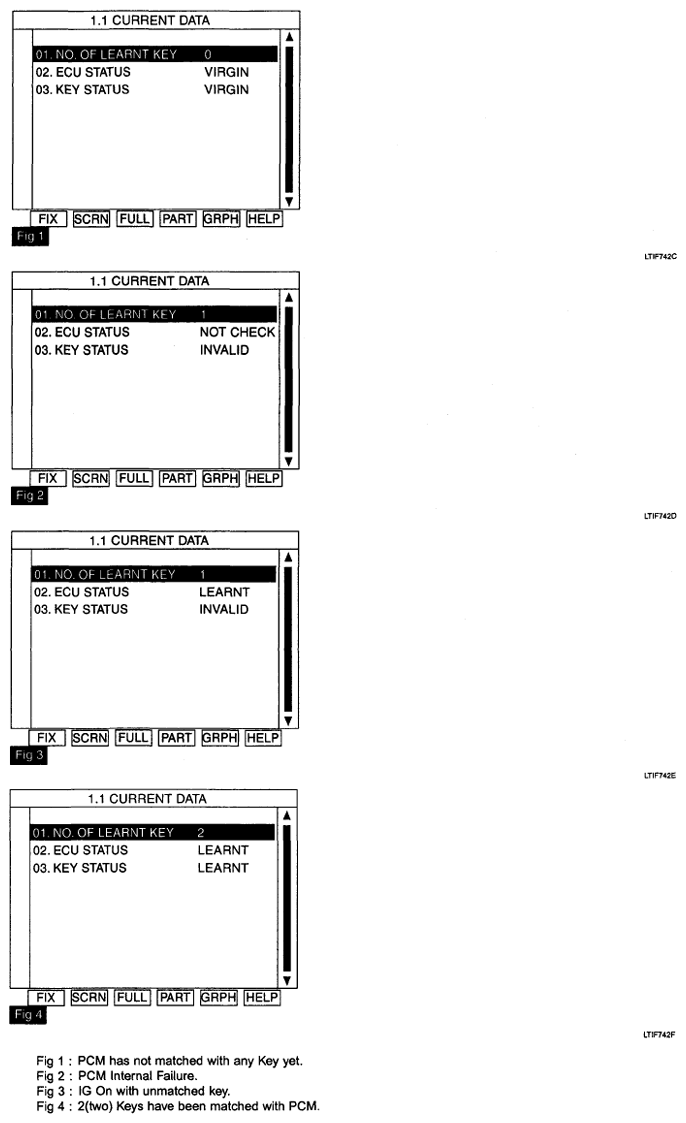

    Fig 1: Monitor Scantool Data Screen Display
    G04881687Courtesy of HYUNDAI MOTOR CO.
  4. Is the communication possible between scan tool and Immobilizer system?

    YES

    If communication between SMARTRA and PCM is OK, Check PCM status of the current data.

    If PCM status is "Lock", Please wait for one hour with IG Key "ON" and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NOTE: Disconnecting battery or other manipulation can not reduce this time. After connecting the battery the timer starts again for one hour.

    NO

    Check DLC cable connection between Scanner and DLC. And, update the scan tool program card with latest version. Finally try communication between scan tool and Immobilizer system.

    If problem still continues, Substitute with a known-good scan tool and check for proper operation. If the problem is corrected, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
