Circuit Diagram

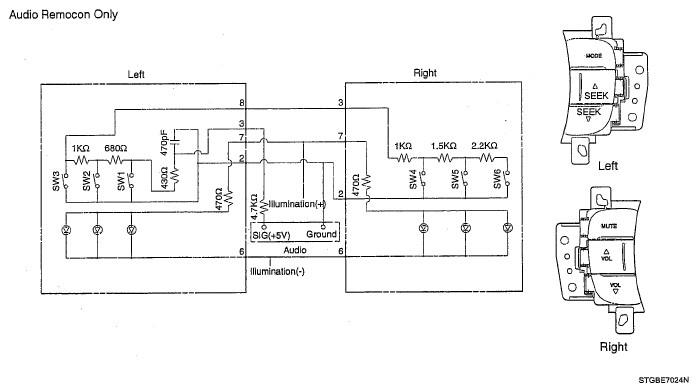

Fig 1: Audio Remote Control Circuit Diagram (Audio Remocon Only)
G05345381Courtesy of HYUNDAI MOTOR CO.

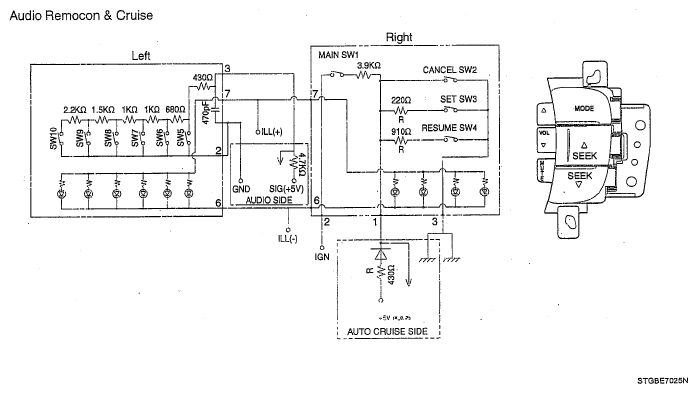

Fig 2: Audio Remote Control Circuit Diagram (Audio Remocon And Cruise)
G05345382Courtesy of HYUNDAI MOTOR CO.
