LEMON Manuals
: Even more car manuals for everyone
Home
>>
Hyundai
>>
2007
>>
Azera GLS
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Audio Remote Control
>>
Chart 8
Chart 8

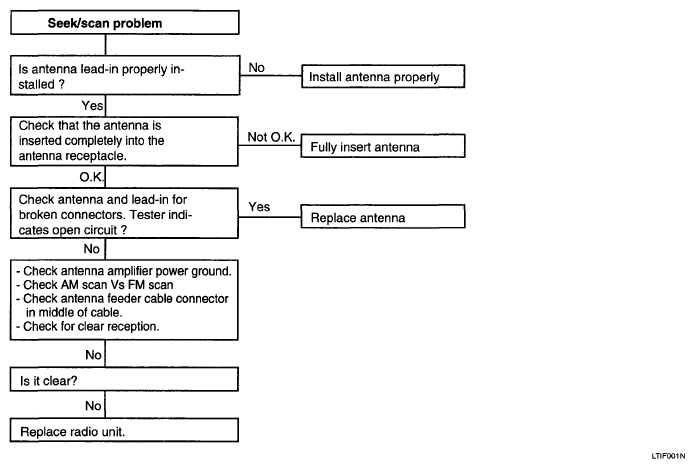

Fig 1: Symptom Troubleshooting Flow Chart 8
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
