Azera GLS
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Audio Remote Control
>>
Chart 1
Chart 1

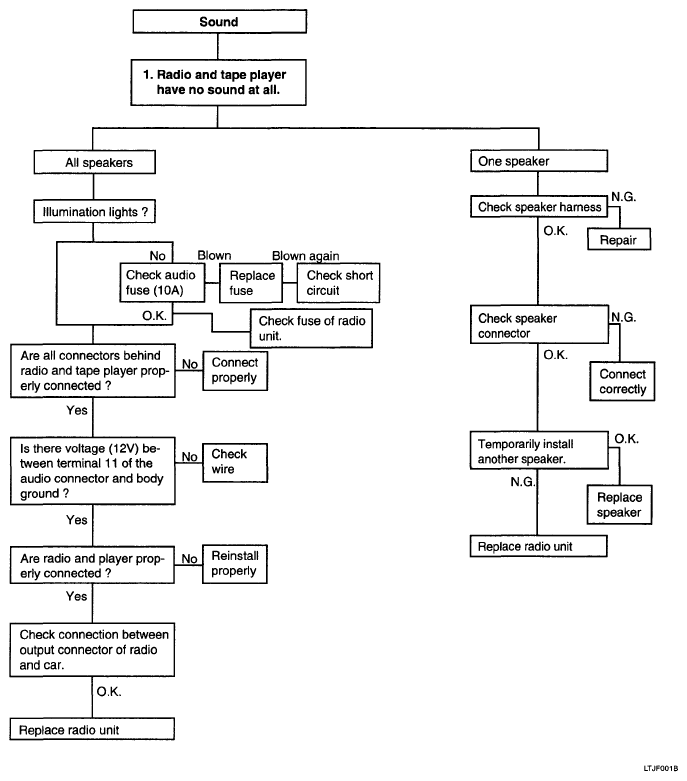

Fig 1: Symptom Troubleshooting Flow Chart 1 (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

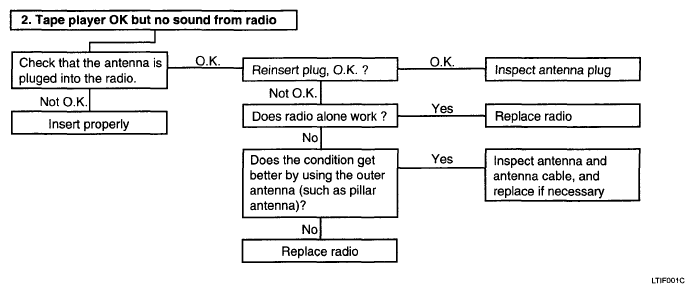

Fig 2: Symptom Troubleshooting Flow Chart 1 (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
