Front Stabilizer Bar: Removal

Loosen the wheel nuts slightly.
Raise the front of the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub (B).

Fig 1: Identifying Front Wheel & Tire
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Be careful not to damage the hub bolts (C) then remove the front wheel and tire (A).
Remove the stabilizer bar link (B) from the strut assembly (A).

Fig 2: Identifying Stabilizer Bar Link
Courtesy of HYUNDAI MOTOR CO.
Remove the tie rod end (A) from the knuckle by using the special tool (09568-4A000).

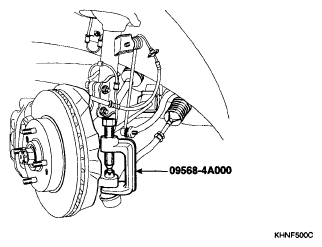

Fig 3: Removing Tie Rod End From Knuckle Using Special Tool
Courtesy of HYUNDAI MOTOR CO.
Remove the two bolts (A) for lower arm ball joint.

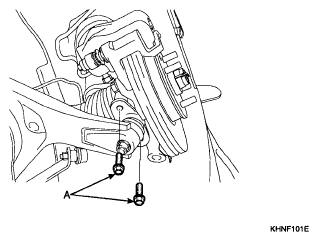

Fig 4: Identifying Bolts For Lower Arm Ball Joint
Courtesy of HYUNDAI MOTOR CO.
Drain power steering oil. (Power steering only)
Remove the pressure pipe mounting bolt (A). (Power steering only)

Fig 5: Identifying Pressure Pipe Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Disconnect between the return hose and tube (A). (Power steering only)

Fig 6: Identifying Return Hose & Tube
Courtesy of HYUNDAI MOTOR CO.
Remove the connecting bolt (A) between the steering universal joint assembly and the pinion assembly.

Fig 7: Identifying Steering Universal Joint Connecting Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove two engine mounting bolts (A, B) and six sub-frame mounting bolts in order to remove the subframe.

Fig 8: Identifying Engine Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

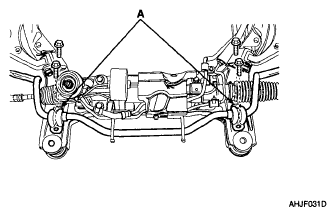

Fig 9: Identifying Sub-Frame Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove both two stabilizer brackets (A) and two bushes respectively.

Fig 10: Identifying Stabilizer Brackets
Courtesy of HYUNDAI MOTOR CO.
Remove the stabilizer bar.
CAUTION: Be careful not to do damage to pressure tubes.
