Front Lower Arm: Removal

  1. Loosen the wheel nuts slightly.

    Raise the front of the vehicle, and make sure it is securely supported.

  2. Remove the front wheel and tire (A) from front hub (B).
    Fig 1: Identifying Front Wheel & Tire
    G04802307Courtesy of HYUNDAI MOTOR CO.
    CAUTION: Be careful not to damage the hub bolts (C) then remove the front wheel and tire (A).
  3. Remove the lower arm ball joint mounting bolts (A).
    Fig 2: Identifying Lower Arm Ball Joint Mounting Bolts
    G04802329Courtesy of HYUNDAI MOTOR CO.
  4. Remove the lower arm mounting bolts (A).

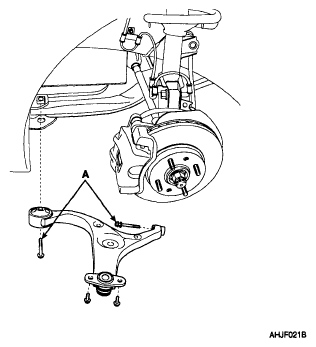

    Fig 3: Identifying Lower Arm Mounting Bolts
    G04802330Courtesy of HYUNDAI MOTOR CO.
