Front Lower Arm: Installation

Tightening torque:

A bushing: 100 ~ 120 Nm (10 ~ 12 Kgf.m, 72 ~ 86 lb-ft)

G bushing: 100 ~ 140 Nm (10 ~ 14 Kgf.m, 72 ~ 101 lb-ft)

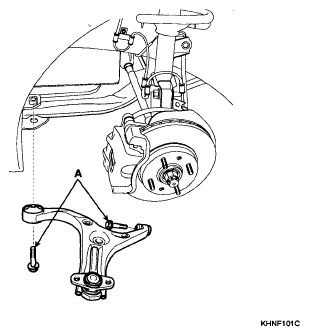

Fig 1: Identifying Lower Arm Mounting Bolts

Courtesy of HYUNDAI MOTOR CO.

Tightening torque:

100 ~ 120 Nm (10 ~ 12 Kgf.m, 72 ~ 86 lb-ft)

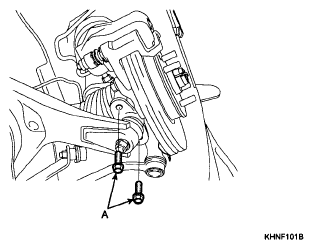

Fig 2: Identifying Lower Arm Ball Joint Mounting Bolts

Courtesy of HYUNDAI MOTOR CO.

Tightening torque:

90 ~ 110 Nm (9 ~ 11 Kgf.m, 65 ~ 79 lb-ft)

Fig 3: Identifying Front Wheel & Tire

Courtesy of HYUNDAI MOTOR CO.
