Component Location

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

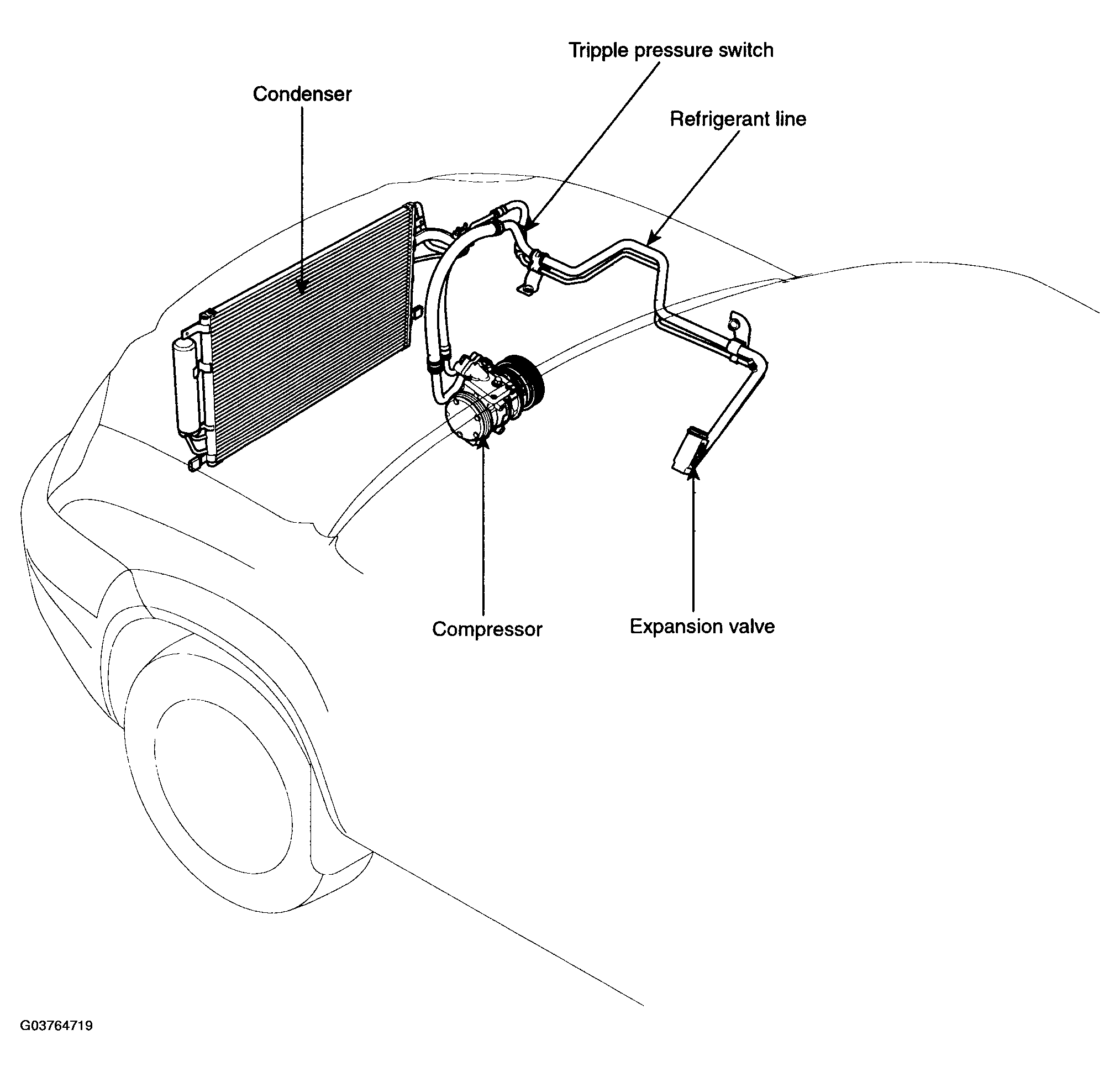

Fig 1: Identifying Refrigerant Line Component Locations
G03764719Courtesy of HYUNDAI MOTOR CO.
