Front Strut Assembly: Installation

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

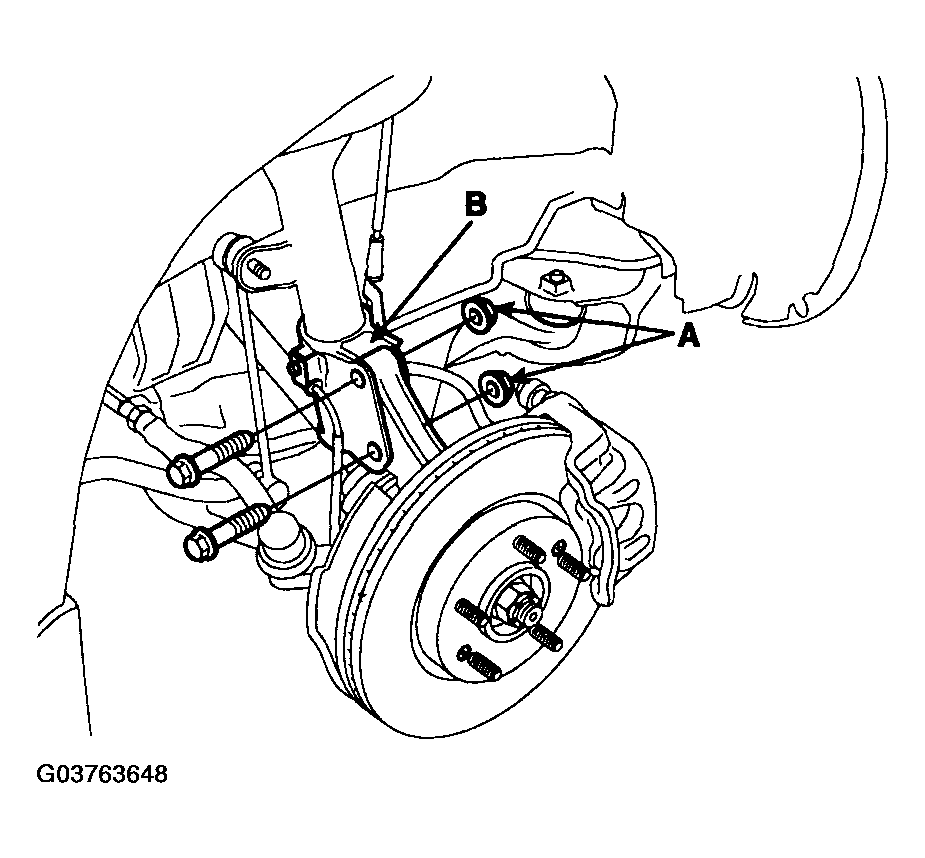

Install the strut assembly (B) and then install the strut lower mounting bolts (A).
Tightening torque

140~160 Nm (1400~1600 Kgf.cm, 103.3~118.0 lbf.ft)

Fig 1: Identifying Strut Assembly & Lower Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

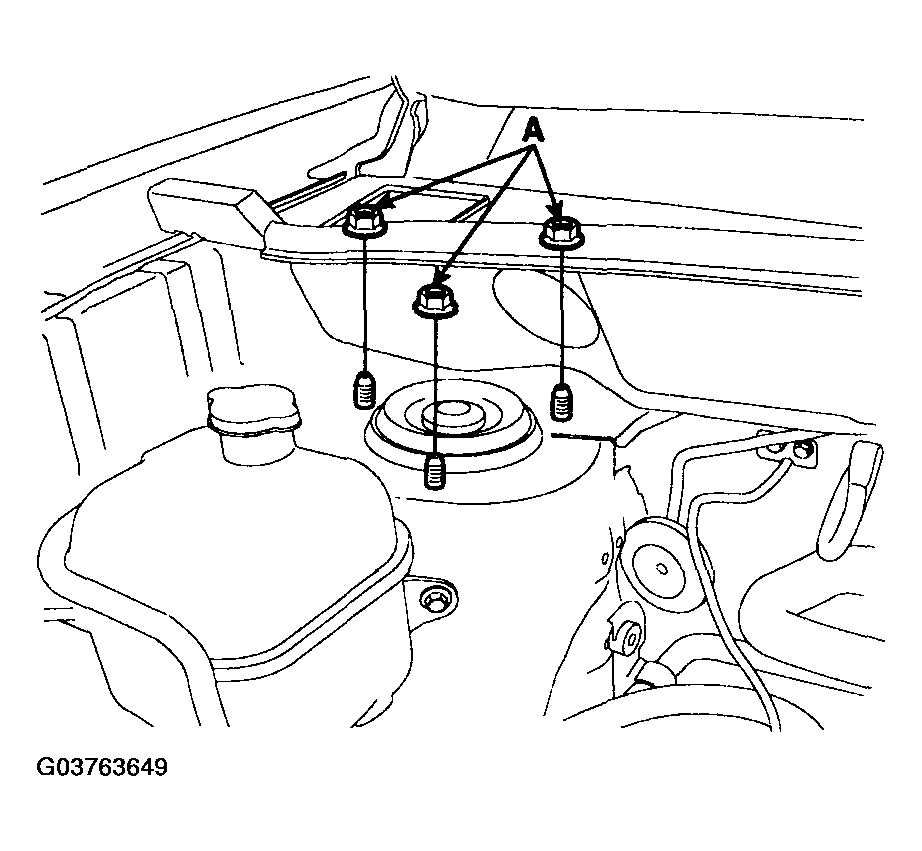

Install the strut upper mounting nuts (A).
Tightening torque

45~60 Nm (450~600 Kgf.cm, 33.2~44.3 lbf.ft)

Fig 2: Identifying Strut Upper Mounting Nuts
Courtesy of HYUNDAI MOTOR CO.

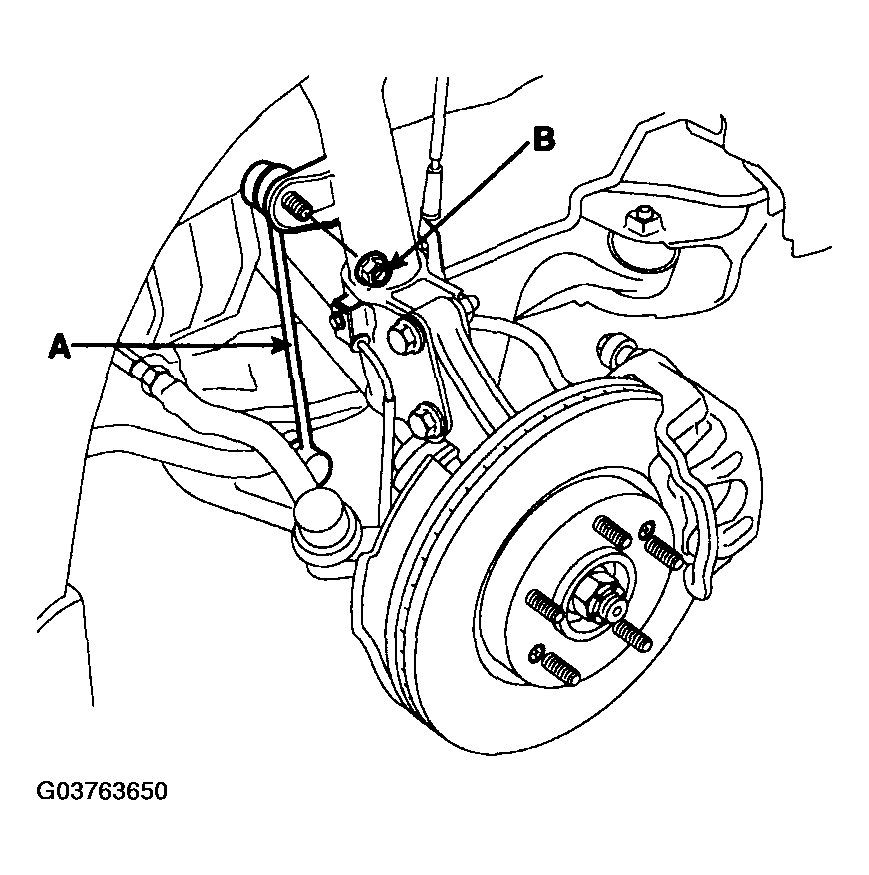

Install the nut (B) on the stabilizer bar link (A).
Tightening torque

100~120 Nm (1000~1200 Kgf.cm, 73.8~88.5 lbf.ft)

Fig 3: Identifying Nut On Stabilizer Bar Link
Courtesy of HYUNDAI MOTOR CO.

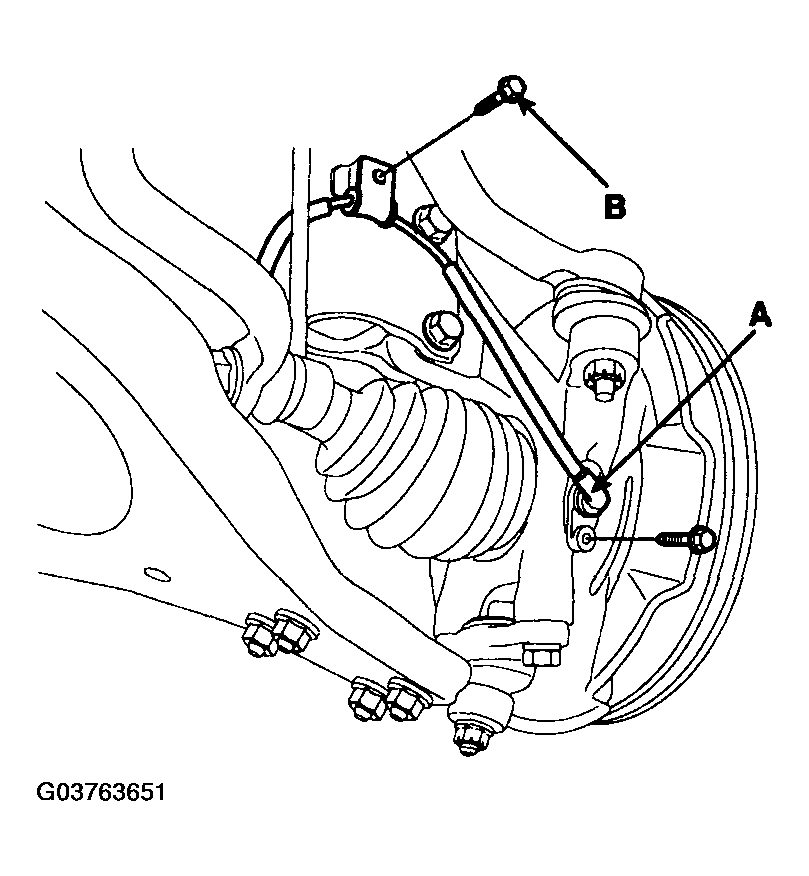

Install the speed sensor cable mounting bolt (B) and speed sensor (A).
Tightening torque

7~11 Nm (70~110 Kgf.cm, 5.2~8.1 lbf.ft)

Fig 4: Identifying Speed Sensor Cable Mounting Bolt And Speed Sensor
Courtesy of HYUNDAI MOTOR CO.

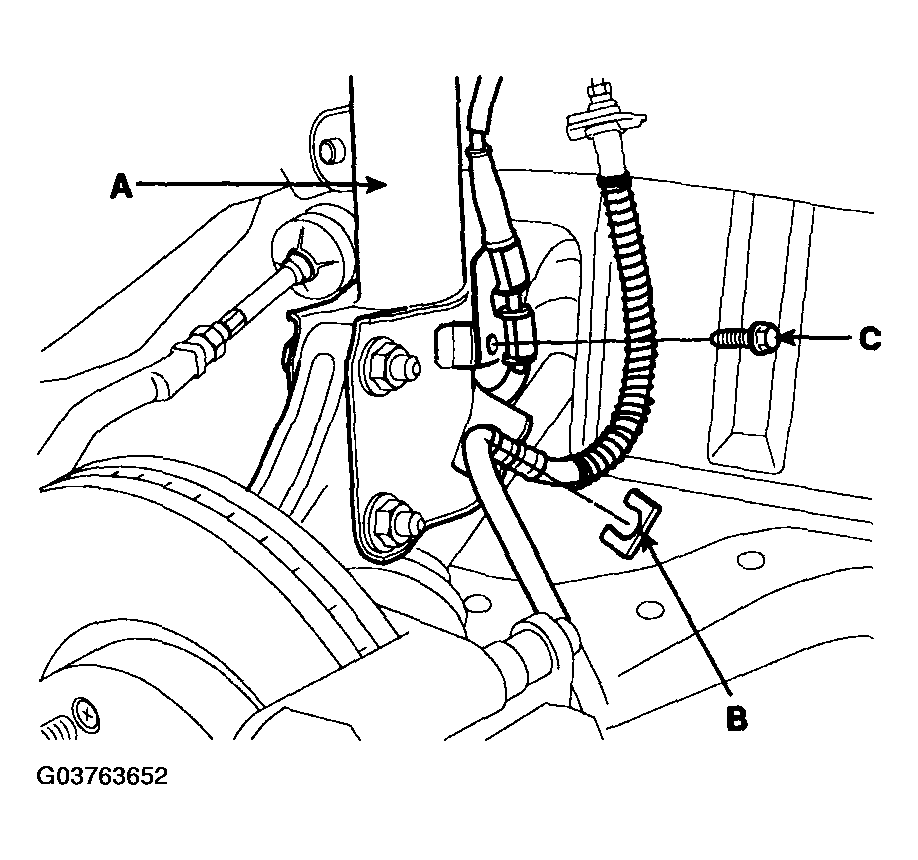

Install the brake hose bracket (B) and speed sensor cable mounting bolt (C) on the strut assembly (A).
Tightening torque

7~11 Nm (70~110 Kgf.cm, 5.2~8.1 lbf.ft)

Fig 5: Identifying Brake Hose Bracket And Speed Sensor Cable Mounting Bolt On Strut Assembly
Courtesy of HYUNDAI MOTOR CO.
Install the front wheel and tire (A) on the front hub (B).
Tightening torque

90~110 Nm (900~1100 Kgf.cm, 66.4~81.2 lbf.ft)

Fig 6: Identifying Front Wheel, Front Hub And Hub Bolts
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Be careful not to damage the hub bolts (C) when installing the front wheel and tire (A).
