Front Strut Assembly: Inspection
WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
- Check the strut insulator bearing for wear or damage.
- Check rubber parts for damage or deterioration.

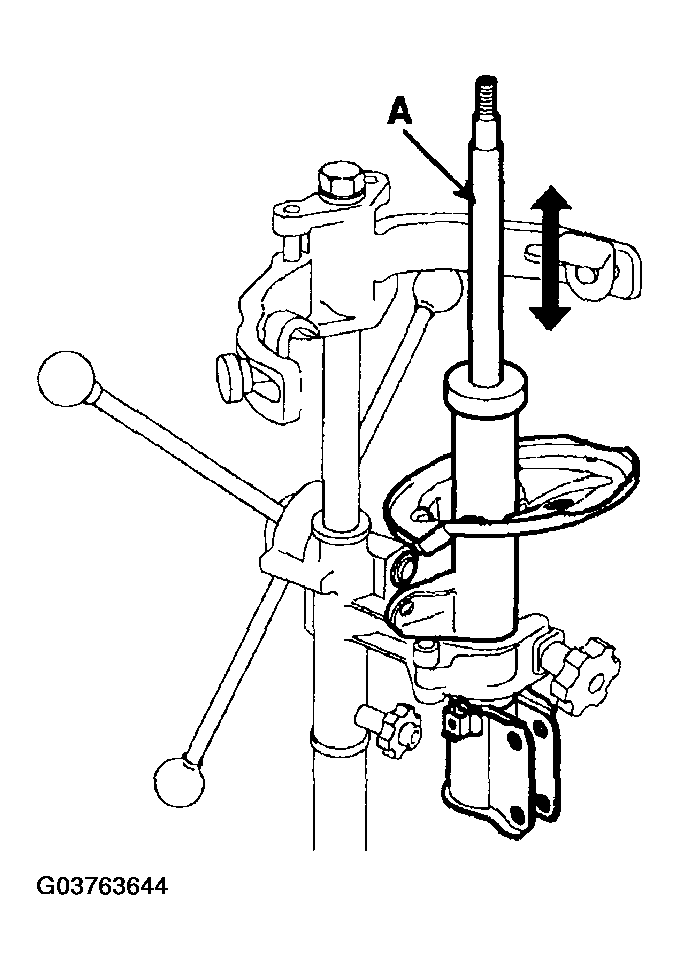

- Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.
Courtesy of HYUNDAI MOTOR CO.
