Front Strut Assembly: Disposal

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully extend the piston rod.
  2. Drill a hole on the A section to remove gas from the cylinder.

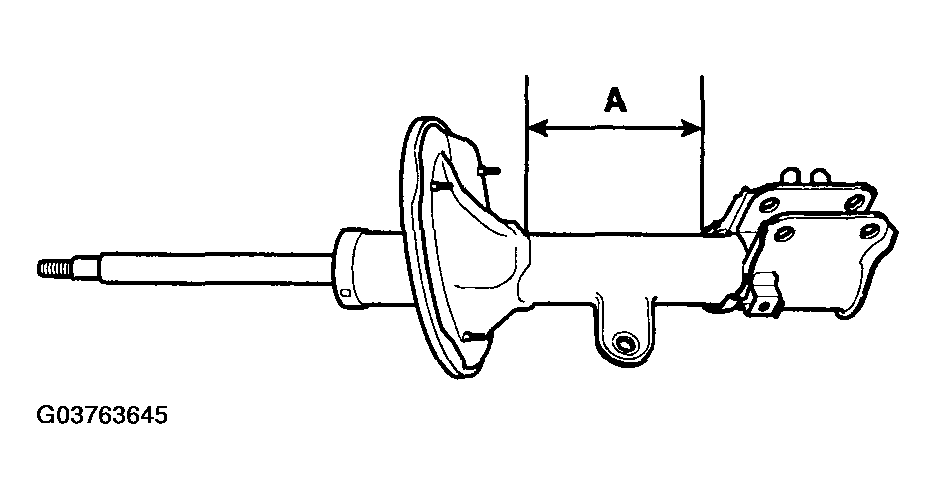

    Fig 1: Identifying "A" Section (For Drilling) On Strut Assembly
    G03763645Courtesy of HYUNDAI MOTOR CO.
CAUTION: The gas coming out is harmless, but be careful of chips that may fly when drilling.
