Front Strut Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dust cover (A) with a flat-tipped (-) screw driver.

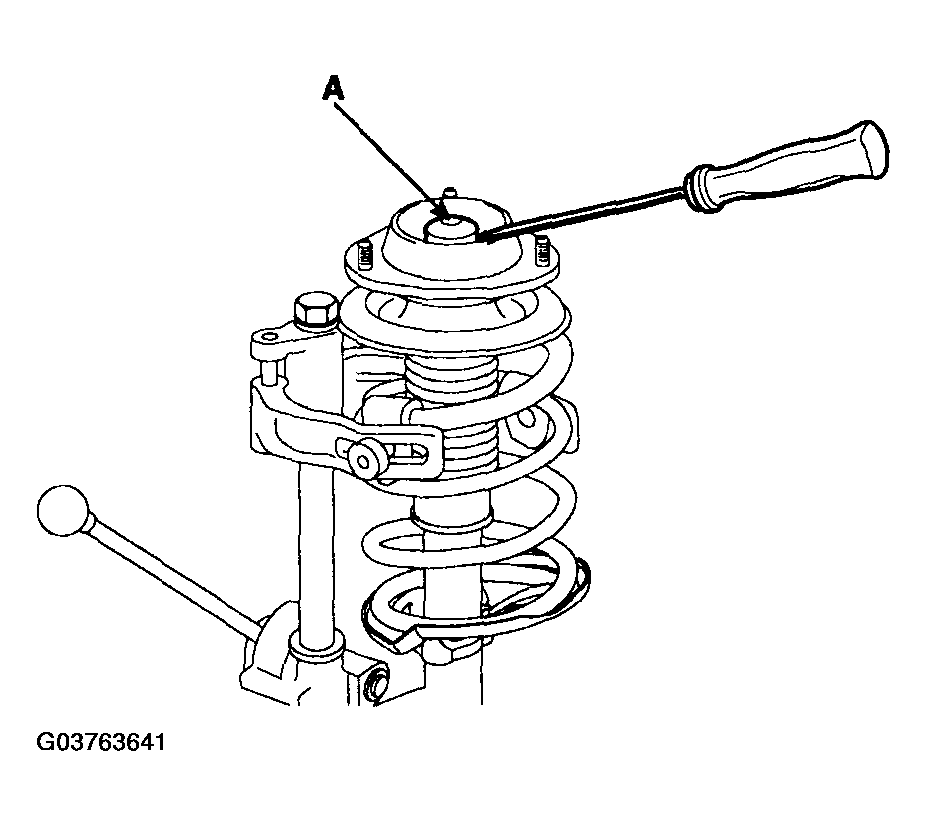

    Fig 1: Removing Dust Cover With Flat-Tipped Screw Driver
    G03763641Courtesy of HYUNDAI MOTOR CO.
  2. Open the dust cover and wipe off grease in the insulator.

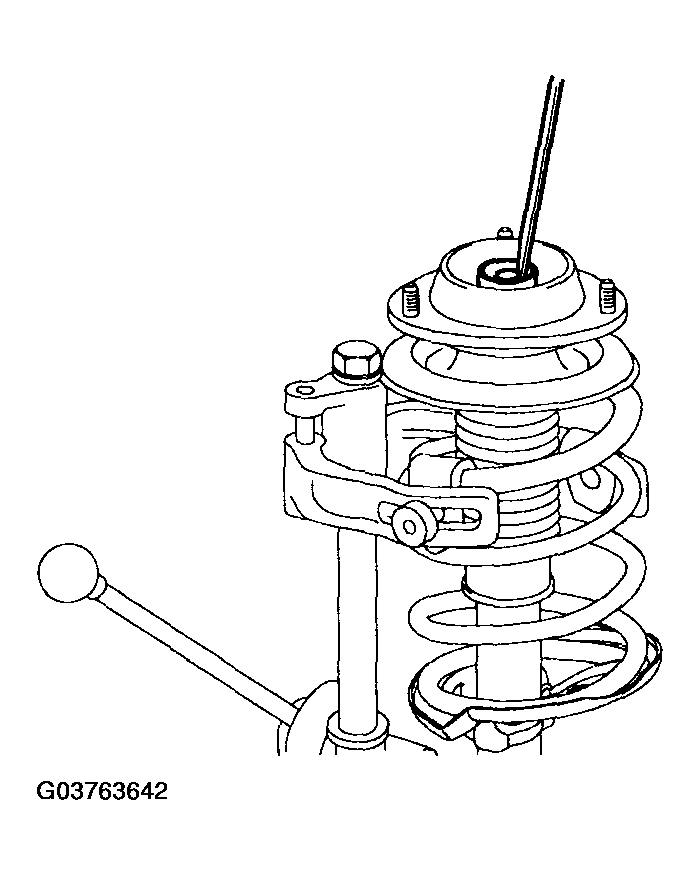

    Fig 2: Removing Grease In Insulator
    G03763642Courtesy of HYUNDAI MOTOR CO.
  3. Using the special tool (09546-26000), compress the coil spring (A) until there is only a little spring tension on the strut.

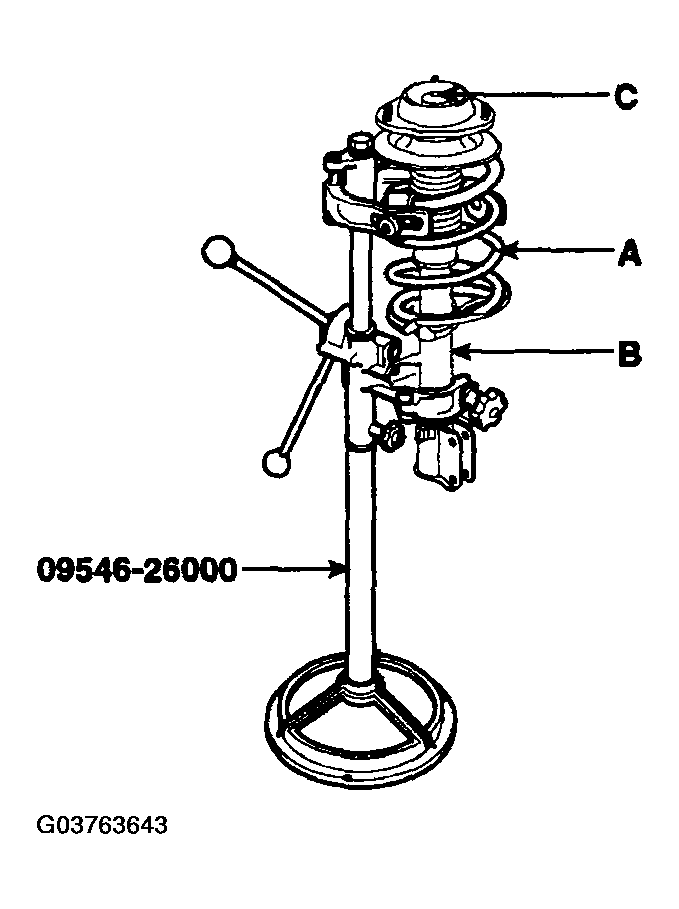

    Fig 3: Identiying Coil Spring, Self-Locking Nut & Strut Assembly When in Special Tool ((09546-26000))
    G03763643Courtesy of HYUNDAI MOTOR CO.
  4. Remove the self-locking nut (C) from the strut assembly (B).
  5. Remove the insulator, spring seat, coil spring and dust cover from the strut assembly.
