Front Stabilizer Bar: Installation

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Install the bushing (B) on the stabilizer bar (A).

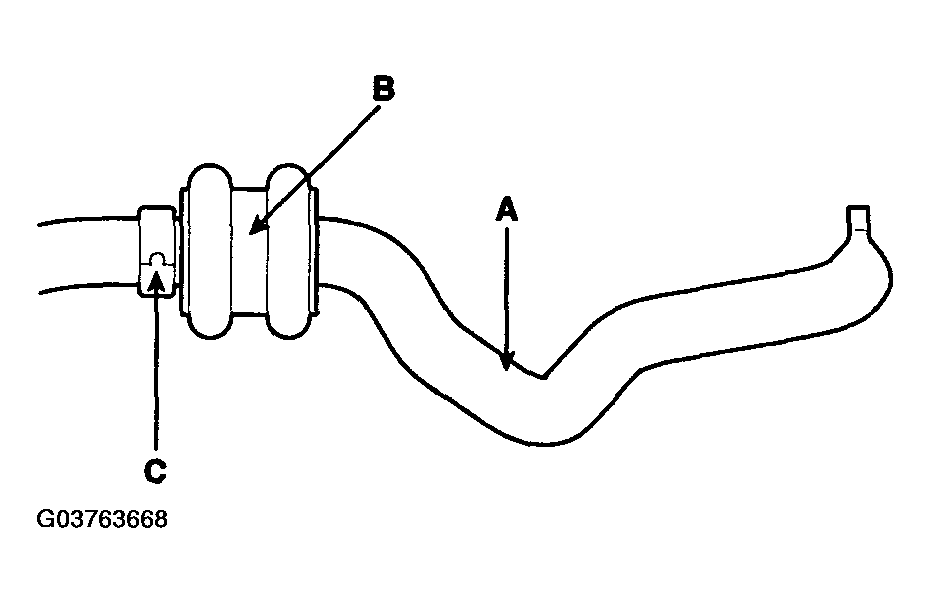

Fig 1: View Of Bushing On Stabilizer Bar
Courtesy of HYUNDAI MOTOR CO.

NOTE: Bring clamp (C) of stabilizer bar (A) into contact with bushing (B).
Install the bracket on the bushing (B).
After tightening the bolts of the bushing bracket temporarily, install the bushing bracket on the opposite side.
Tightening torque

50~65 Nm (500~650 Kgf.cm, 36.9~48.0 lbf.ft)
Install the rear mounting bolts of sub-frame.

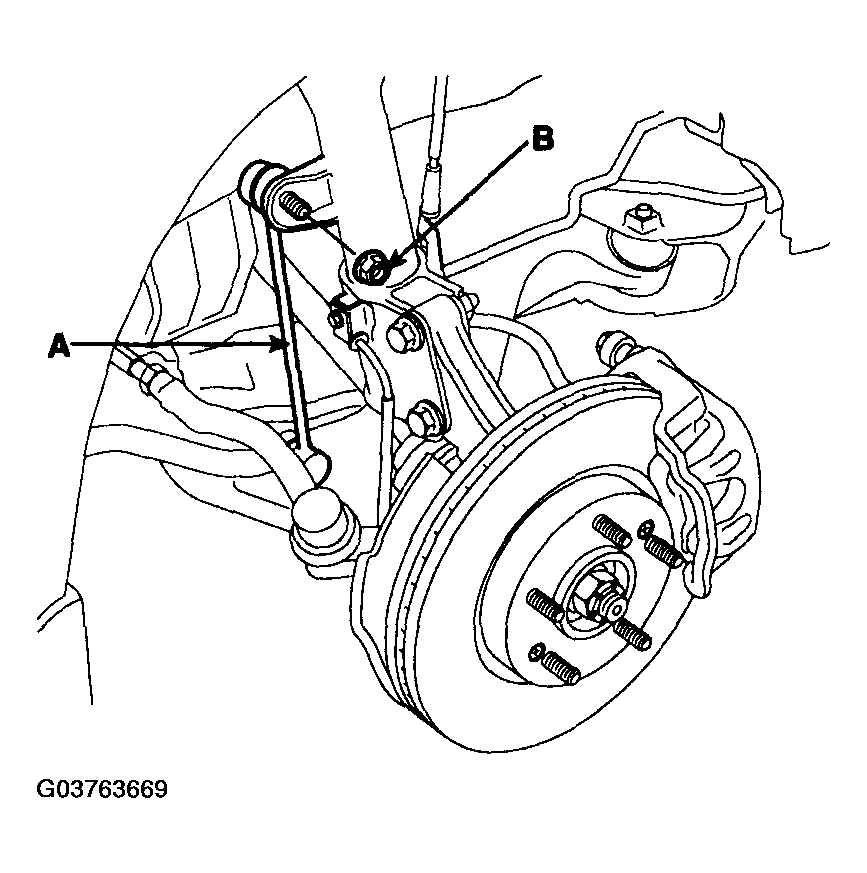

Install the nut (B) on the stabilizer bar link (A).
Tightening torque

100~120 Nm (1000~1200 Kgf.cm, 73.8~88.5 lbf.ft)

Fig 2: View Of Nut On Stabilizer Bar Link
Courtesy of HYUNDAI MOTOR CO.
Install the front wheel and tire (A) on the front hub (B).
Tightening torque

90~110 Nm (900~1100 Kgf.cm, 66.4~81.2 lbf.ft)

Fig 3: Identifying Front Wheel, Front Hub And Hub Bolts
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Be careful not to damage the hub bolts (C) when installing the front wheel and tire (A).
