Front Lower Arm: Replacement

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools(09214-32000 & 09216-211000), remove the bushing from the lower arm.

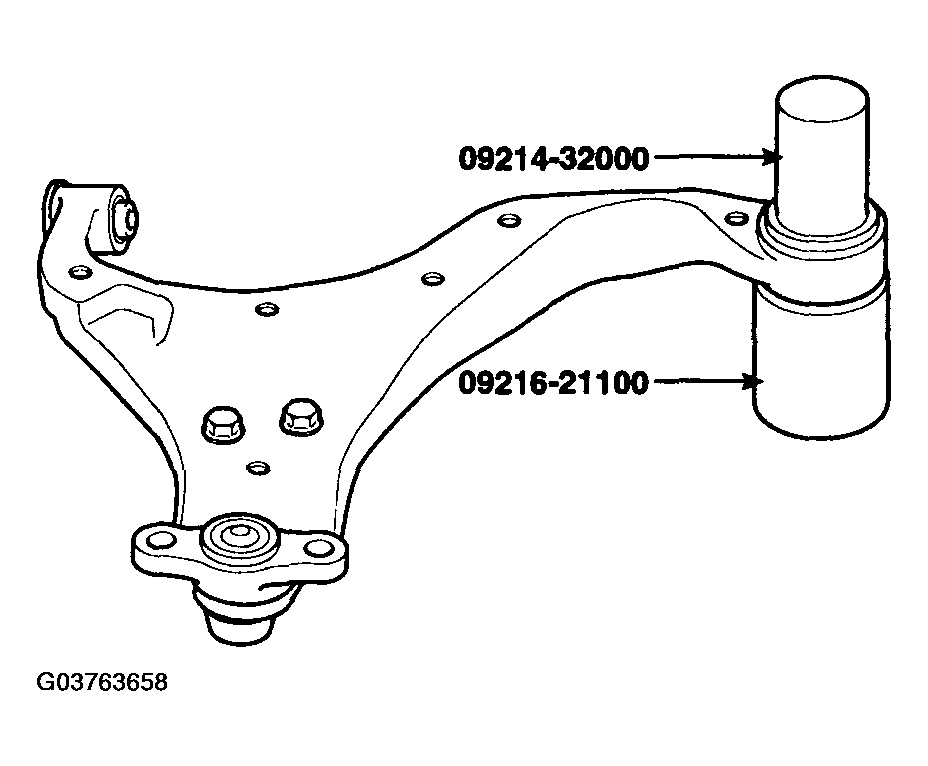

    Fig 1: Removing Bushing From Lower Arm Using Special Tool
    G03763658Courtesy of HYUNDAI MOTOR CO.
  2. Apply soap solution to the following parts.
    • Outer surface of the bushing.
    • Inner surface of the lower bushing mounting part.
  3. Using the special tools(09214-32000 & 09216-21100), install the bushing on the lower arm.

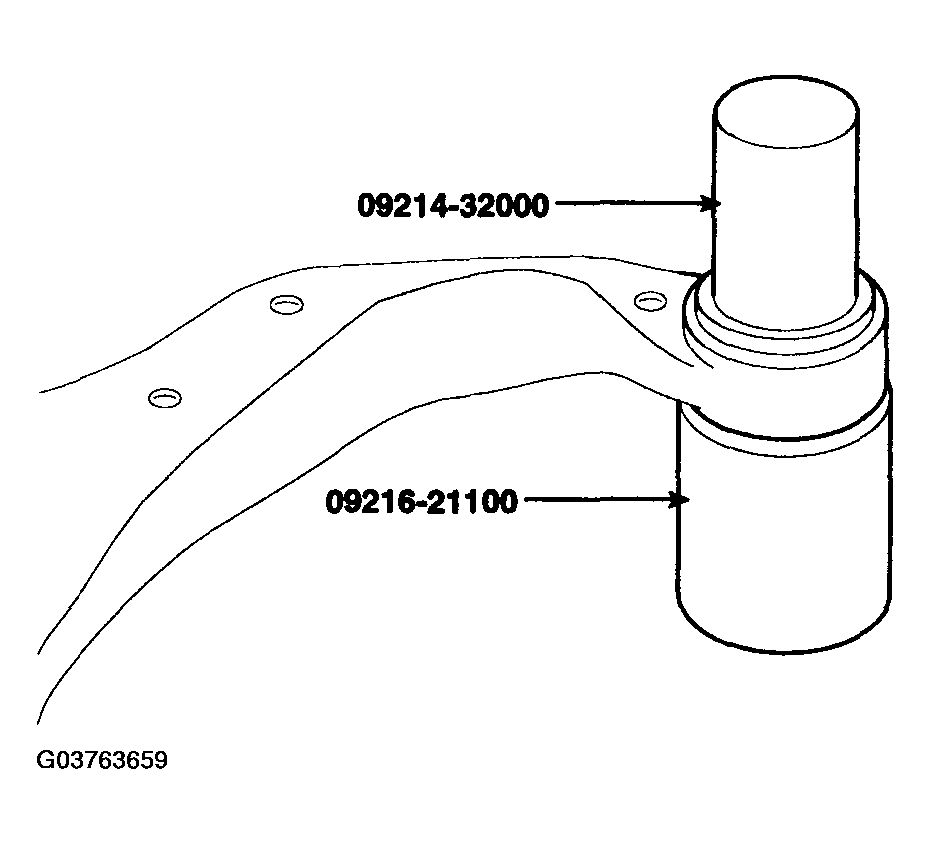

    Fig 2: Installing Bushing On Lower Arm using Special Tools
    G03763659Courtesy of HYUNDAI MOTOR CO.
    CAUTION: Insert bush in the orientation shown in Fig 3.

    Separation force is over 800Kg

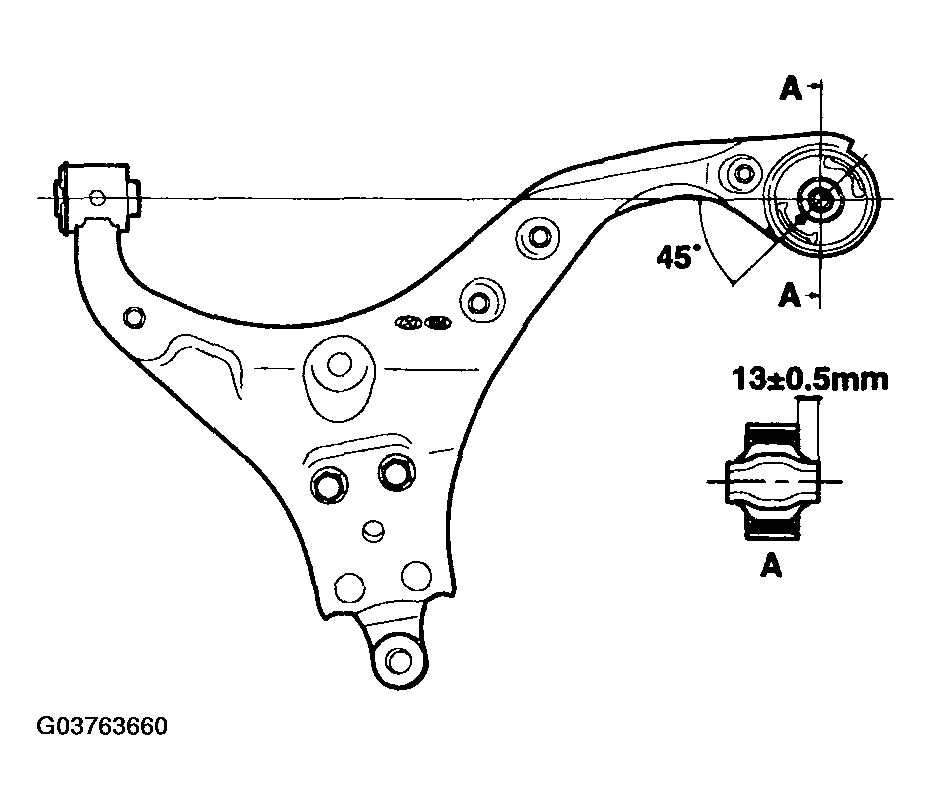

    Fig 3: Identifying Bush Orientation
    G03763660Courtesy of HYUNDAI MOTOR CO.
