Front Lower Arm: Installation

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Install the lower arm mounting bolts (A).
Tightening torque

A bushing:

100~120 Nm (1000~1200 Kgf.cm, 73.8~88.5 lbf.ft)

G bushing:

140~160 Nm (1400~1600 Kgf.cm, 103.3~118.0 lbf.ft)

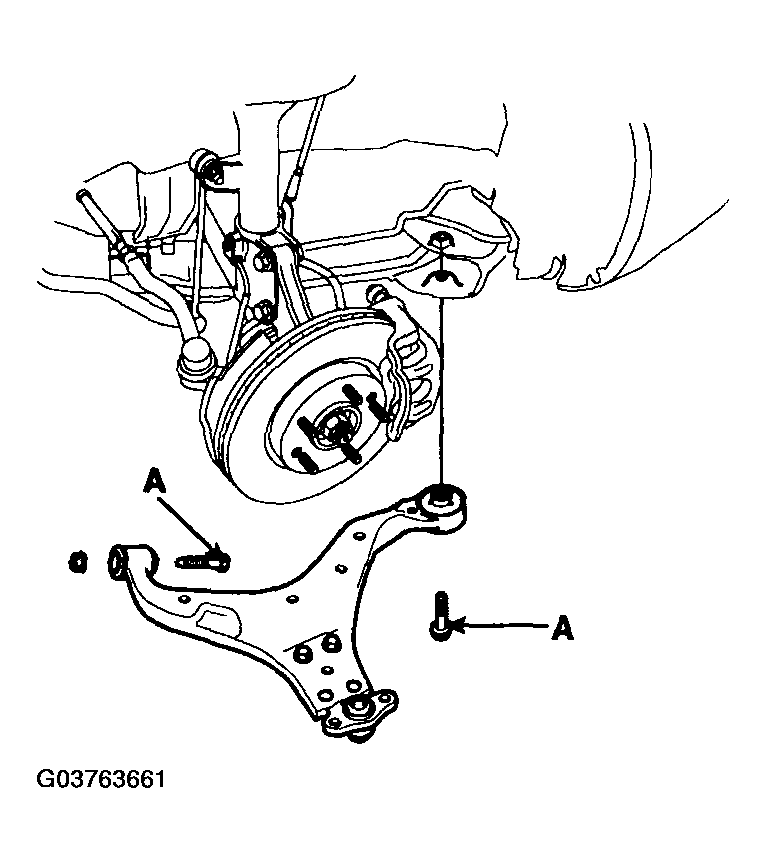

Fig 1: Identifying Lower Arm Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Install the lower arm ball joint mounting bolts (A).
Tightening torque

100~120 Nm (1000~1200 Kgf.cm, 73.8~88.5 lbf.ft)

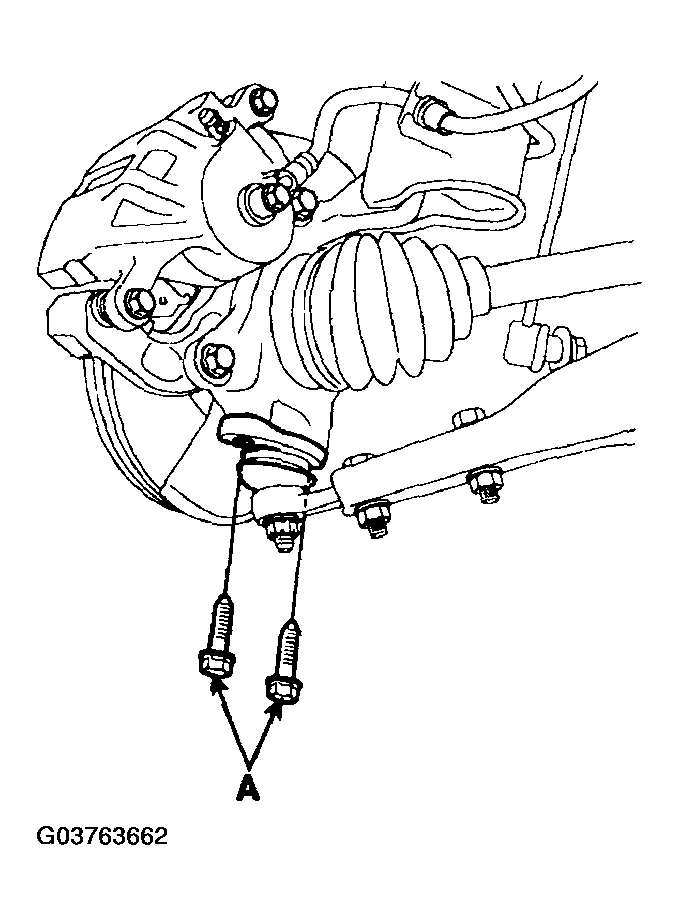

Fig 2: Identifying Lower Arm Ball Joint Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Install the front wheel and tire (A) on the front hub (B).
Tightening torque

90~110 Nm (900~1100 Kgf.cm, 66.4~81.2 lbf.ft)

Fig 3: Identifying Front Wheel, Front Hub And Hub Bolts
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Be careful not to damage the hub bolts (C) when Installing the front wheel and tire (A).
