Photo Sensor: Inspection
WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

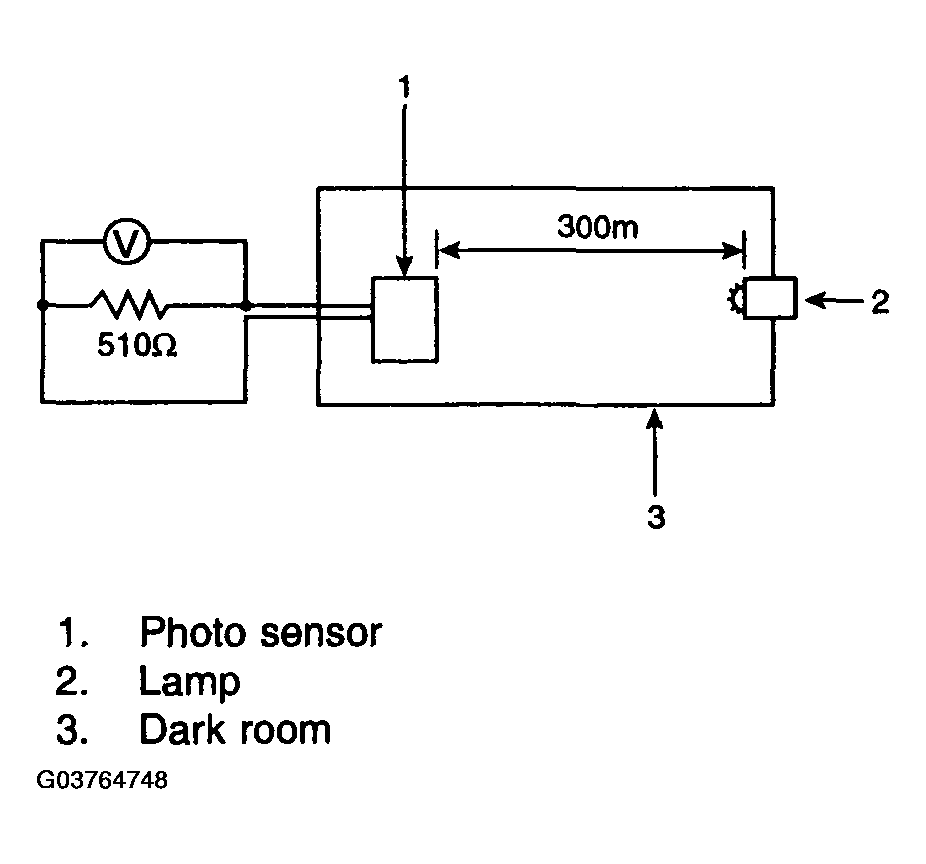

Install the lamp and the photo sensor in the dark room. Then measure the output current.
LUX VOLTAGE REFERENCE
| LUX |
10000 |
20000 |
30000 |
| Voltage (mV) |
26 |
46 |
70 |
Courtesy of HYUNDAI MOTOR CO.
