AMBIENT TEMPERATURE SENSOR TEMPERATURE
Temp (°C)
R (kΩ)
-20
284.5
0
97.5
25
30.000
50
10.83
70
5.27

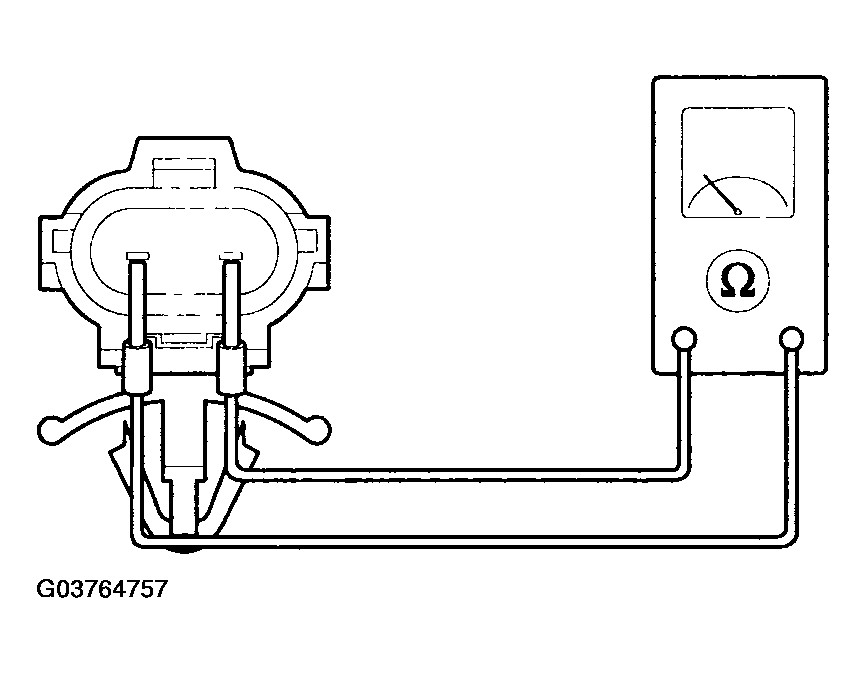

Fig 1: Measuring Resistance Of Ambient Temperature Sensor
