Ambient Temperature Sensor: Inspection: Characteristics

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

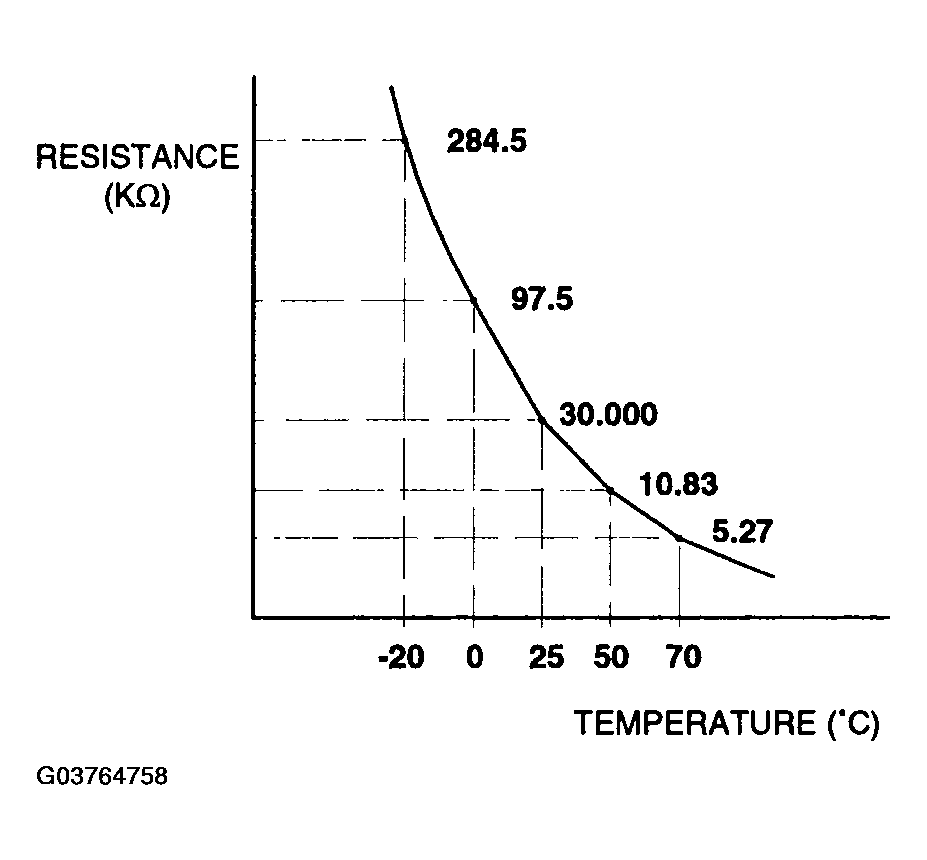

Fig 1: Ambient Temperature Sensor Characteristics Graph
G03764758Courtesy of HYUNDAI MOTOR CO.
