Seat Assembly Replacement: Notes

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat assembly mounting cover (A).
  2. After loosening the seat assembly mounting bolt and nut, remove the seat assembly (B).

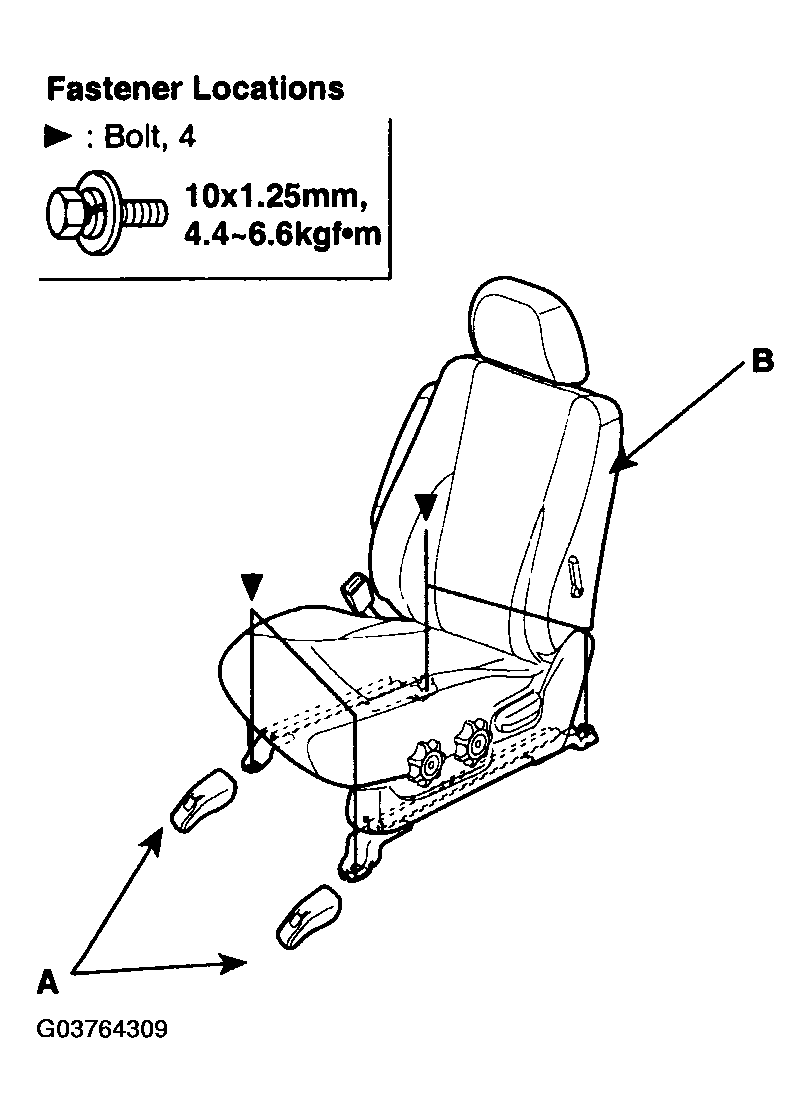

    Fig 1: Identifying Seat Assembly And Mounting Cover
    G03764309Courtesy of HYUNDAI MOTOR CO.
  3. Open the connector box (A).
  4. Disconnect the connector (B), and remove the seat assembly.

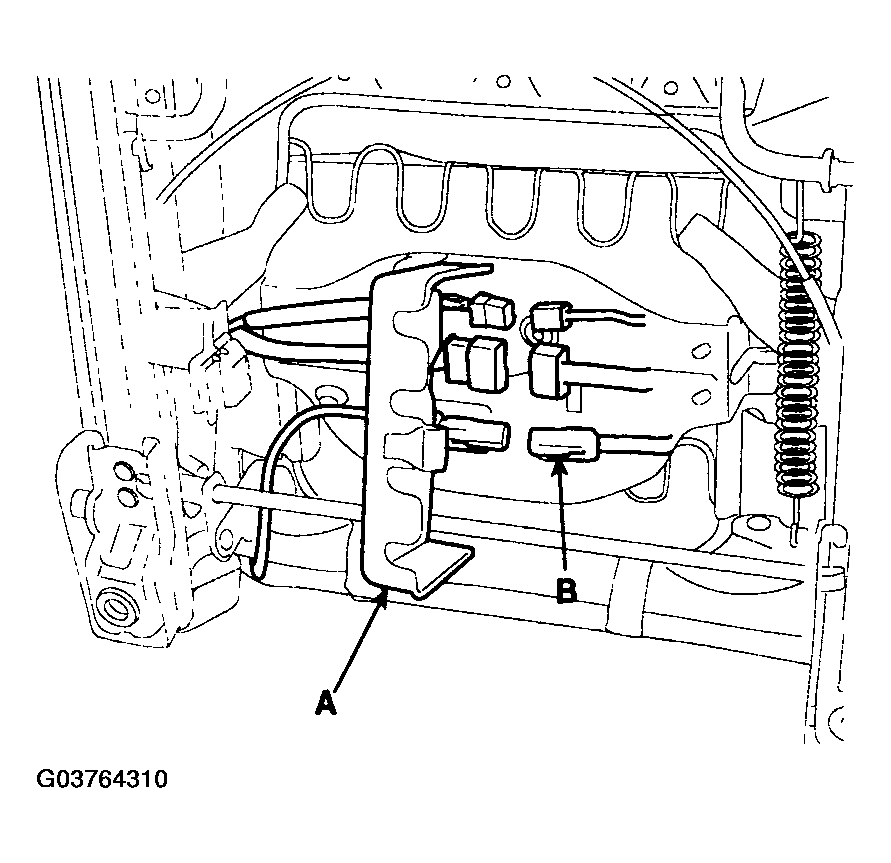

    Fig 2: Identifying Connector Box & Connector
    G03764310Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
    CAUTION: SEAT MOUNTING BOLT INSTALLATION PROCEDURE.
    • Set the seat into the most rearward position. Check then each slide is locked, and then tighten the front mounting bolt temporarily.
    • Set the seat into the most forward position. Check that each slide is locked, and then tighten the rear mounting bolt completely.
    • Set the seat into the most rearward position. Check the front mounting bolt completely.
    • Check that the seat operates to and fro smoothly and the locking portion locks properly.
