Home >> Hyundai >> 2007 >> Accent SE, Standard >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter >> Components

Starting System: Starter: Components

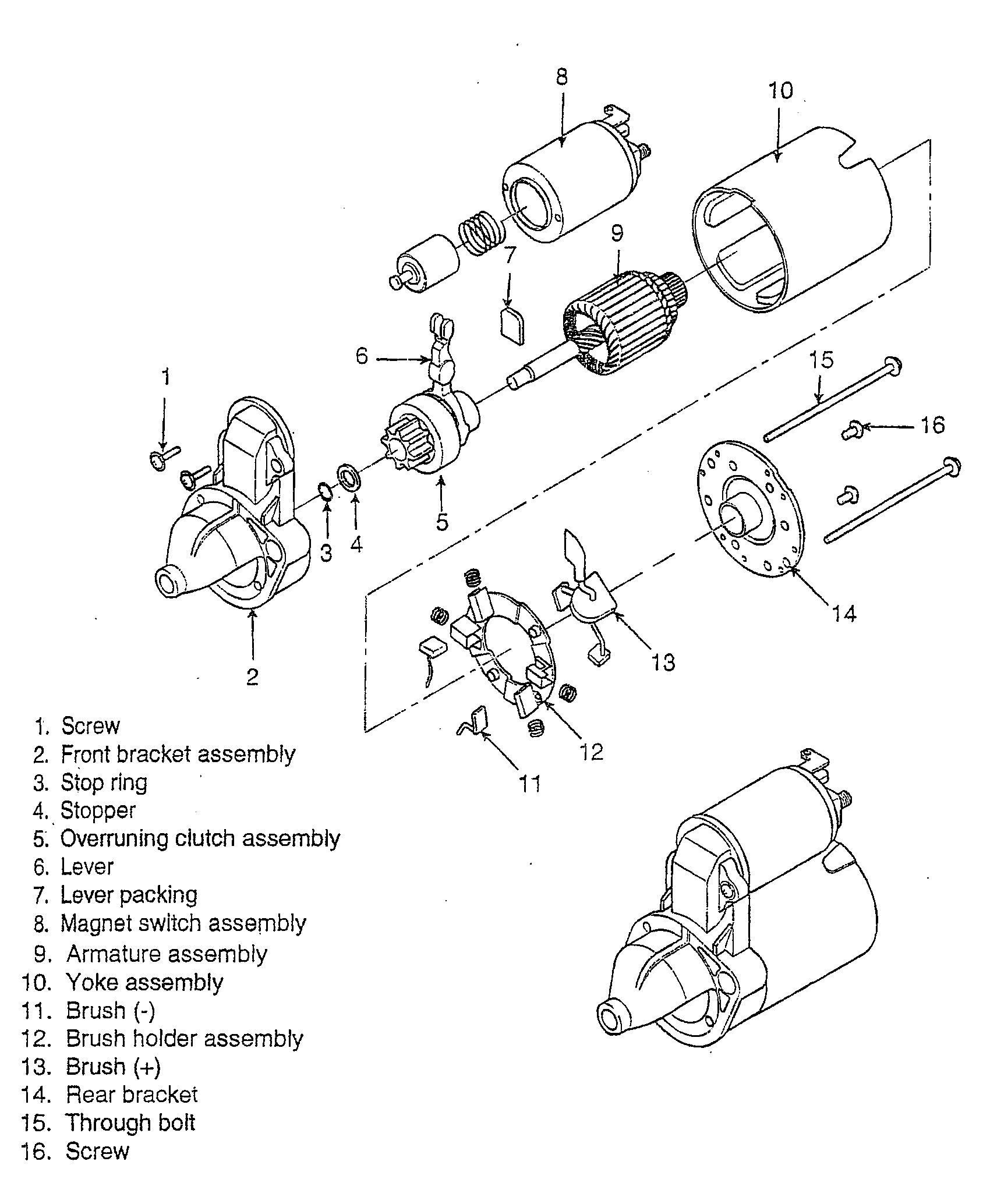

Fig 1: Identifying Starter Components

G00455561

Courtesy of HYUNDAI MOTOR CO.
