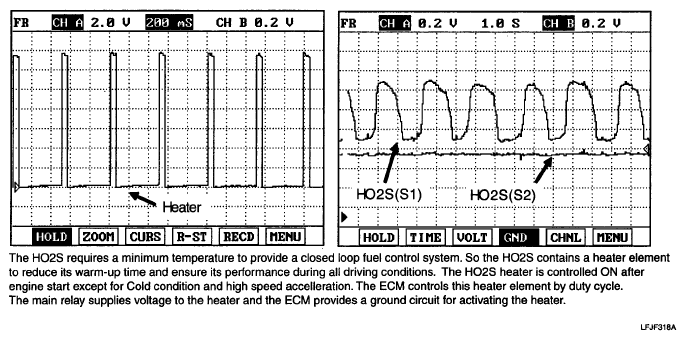

Home >> Hyundai >> 2007 >> Accent GS, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) >> DTC Troubleshooting Procedures >> DTC P0036 Ho2S Heater Control Circuit (Bank 1 / Sensor 2) >> Signal Waveform & Data
