Home >> Hyundai >> 2007 >> Accent GS, Automatic >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter >> Component

Starting System: Starter: Component

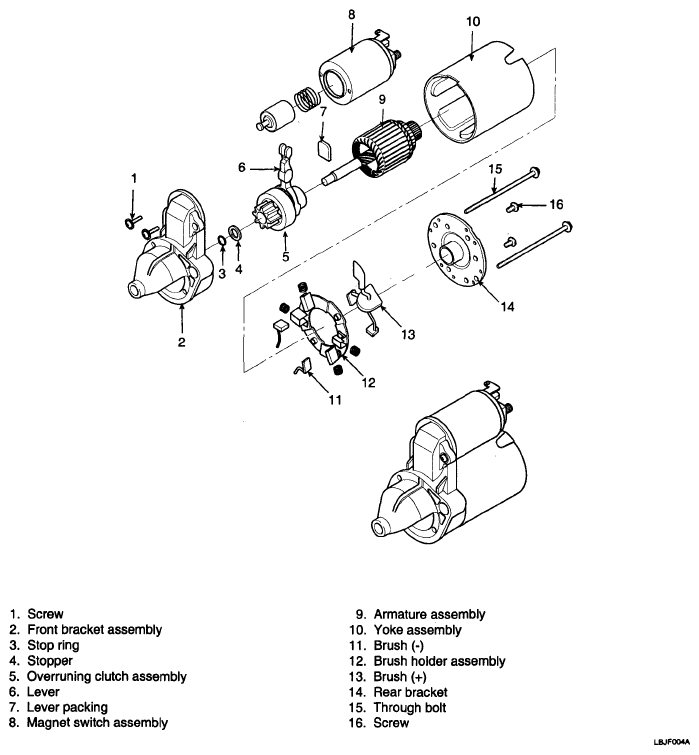

Fig 1: Identifying Starter Component

G04801445

Courtesy of HYUNDAI MOTOR CO.
