Body & Frame: Windows: Exterior: Mirror: Components

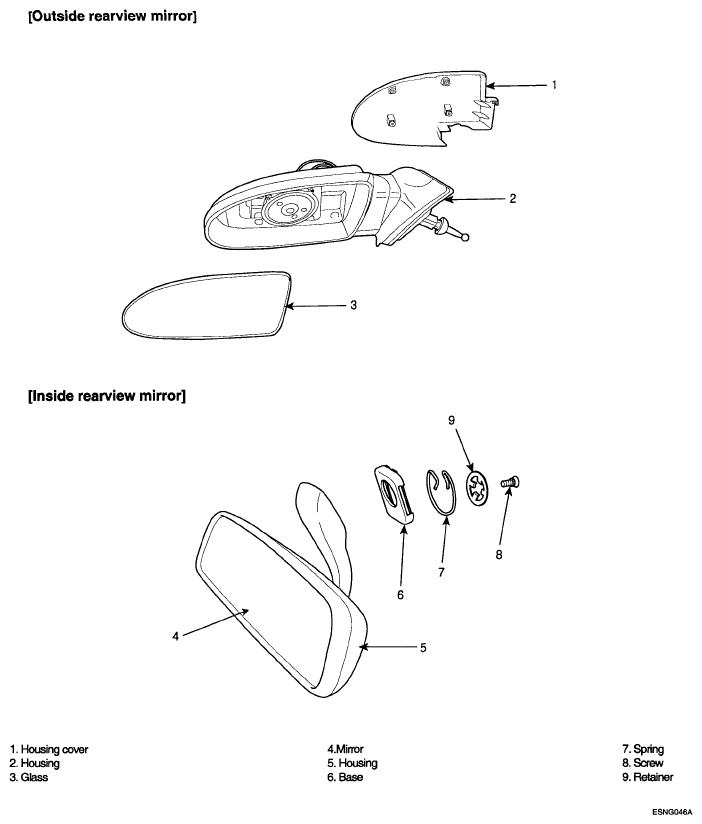

Fig 1: Identifying Mirror Components

G04802749

Courtesy of HYUNDAI MOTOR CO.
