Ignition Switch: Inspection

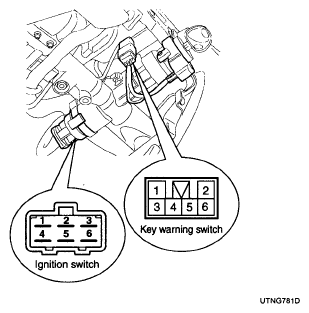

Fig 1: Identifying Ignition Switch Connector & Key Warning Switch Connector
G04803145Courtesy of HYUNDAI MOTOR CO.
  1. Disconnect the ignition switch connector and key warning switch connector from under the steering column.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

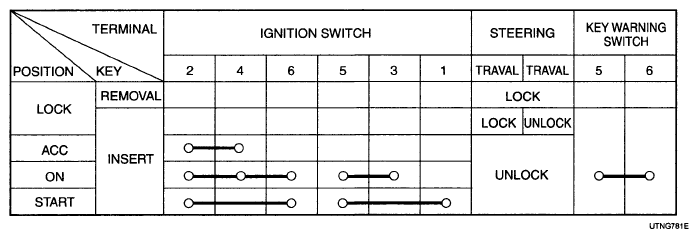

    Fig 2: Ignition Switch Continuity Reference Chart
    G04803146Courtesy of HYUNDAI MOTOR CO.
