Backup Lamp Switch: Inspection

Disconnect the backup lamp switch (A).

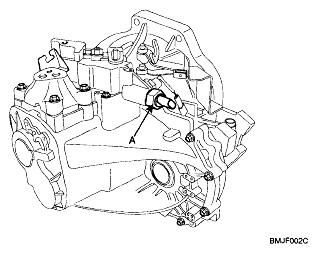

Fig 1: Identifying Backup Lamp Switch
Courtesy of HYUNDAI MOTOR CO.
Check the continuity between no. 1 and 2 terminals of backup lamp switch.
When the shift lever is in reverse, there should be continuity.

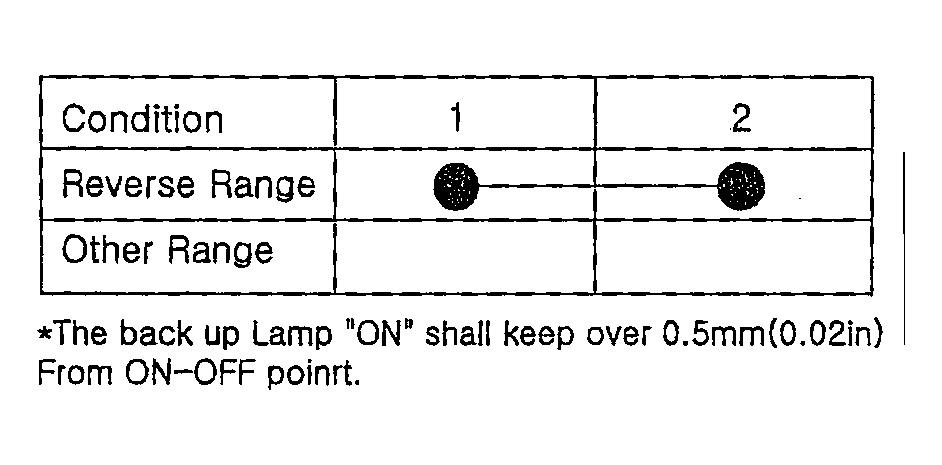

Fig 2: Identifying Continuity Table
Courtesy of HYUNDAI MOTOR CO.

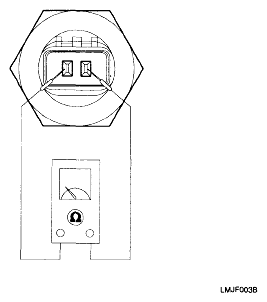

Fig 3: Checking Continuity Between No. 1 & 2 Terminals Of Backup Lamp Switch
Courtesy of HYUNDAI MOTOR CO.
If necessary, repair or replace the backup lamp switch.
