Manual Transaxle: Installation

Installation is in the reverse order of removal.

Perform the following:

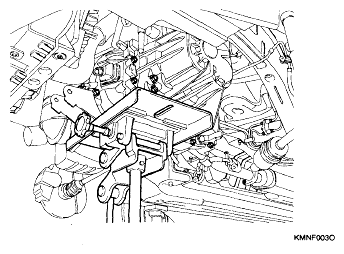

  1. Lowering the vehicle or lifting up a jack, install the transaxle assembly.
    CAUTION: When installing the transaxle assembly, be careful not to damage any surrounding parts or body components.
    Fig 1: Lifting Transaxle Assembly
    G04801969Courtesy of HYUNDAI MOTOR CO.

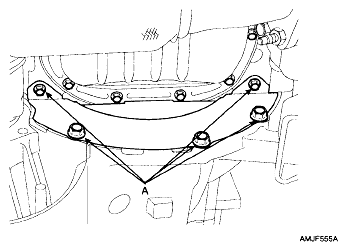

  2. Install the transaxle lower mounting bolts (A).
    Fig 2: Identifying Transaxle Lower Mounting Bolts
    G04801968Courtesy of HYUNDAI MOTOR CO.

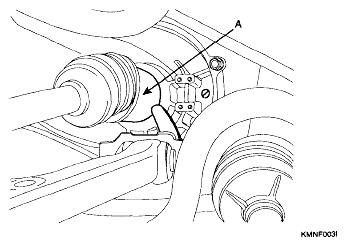

  3. Install drive shaft to transaxle. (See DRIVESHAFT ) article.
    Fig 3: Identifying Drive Shaft
    G04801972Courtesy of HYUNDAI MOTOR CO.
  4. Install the sub frame. (see INSTALLATION ).

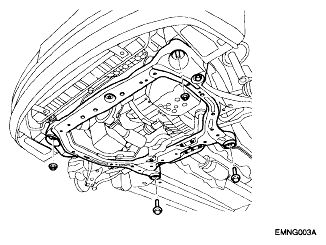

    Fig 4: Identifying Sub Frame Bolts
    G04801964Courtesy of HYUNDAI MOTOR CO.

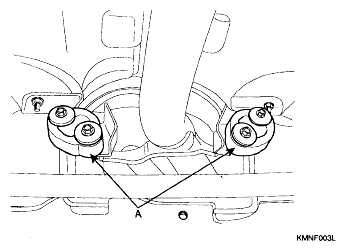

  5. Install the exhaust pipe mounting rubber (A) to the sub frame.
    Fig 5: Identifying Exhaust Pipe Mounting Rubber
    G04801963Courtesy of HYUNDAI MOTOR CO.

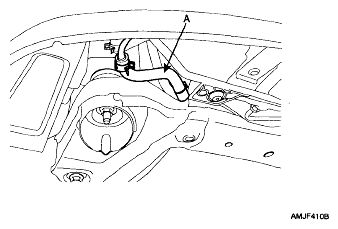

  6. Connect the power steering return hose (A).
    Fig 6: Identifying Power Steering Return Hose
    G04801960Courtesy of HYUNDAI MOTOR CO.
  7. Install the rear roll stopper mounting bolt. (see INSTALLATION ).
  8. Install the front roll stopper mounting bolt. (see INSTALLATION ).
  9. Connect the stabilizer bar link. (see FRONT STABILIZER BAR )
  10. Connect the tie rod end ball joint from the knuckle after removing the split pin. (see DRIVESHAFT ) article.
  11. Connect the lower arm assembly from the knuckle. (see DRIVESHAFT ) article.
  12. Install the bolt connecting the universal joint and the pinion shaft. (Refer to 'GENERAL(STEERING SYSTEM) ).

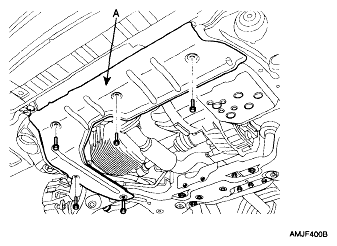

  13. Install the under cover (A).
    Fig 7: Identifying Under Cover Bolts
    G04801958Courtesy of HYUNDAI MOTOR CO.

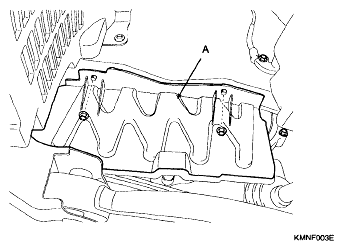

  14. Install the two side cover nut (A).
    Fig 8: Identifying Side Cover Nut
    G04801959Courtesy of HYUNDAI MOTOR CO.
  15. Install the transaxle upper mounting bolts from the engine.

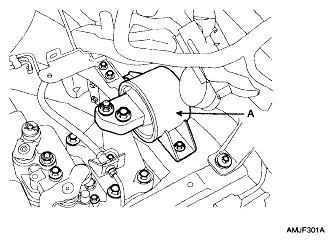

  16. Install the transaxle mounting support bracket (A).
    Fig 9: Identifying Transaxle Mounting Support Bracket
    G04801961Courtesy of HYUNDAI MOTOR CO.
  17. Remove the SST (09200-38001).

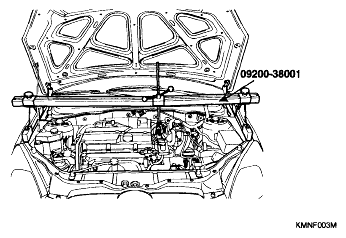

    Fig 10: Holding Engine & Transaxle Assembly
    G04801962Courtesy of HYUNDAI MOTOR CO.

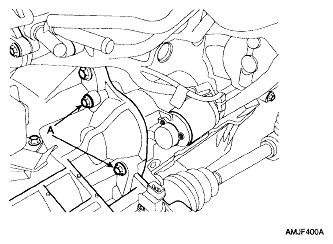

  18. Install the engine start motor mounting bolts (A).
    Fig 11: Identifying Engine Start Motor Mounting Bolts
    G04801967Courtesy of HYUNDAI MOTOR CO.
  19. Install the two cable bracket bolts (A).

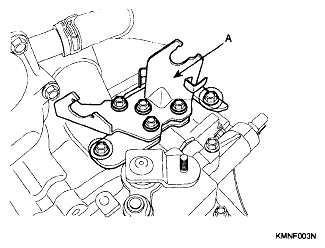

    Fig 12: Identifying Cable Bracket Bolts
    G04801966Courtesy of HYUNDAI MOTOR CO.
  20. Install the transaxle wire harness connectors and control cable to transaxle.
    1. Connect the back lamp switch connector (B).
    2. Connect the vehicle speed sensor (A).

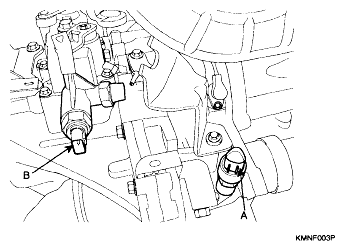

      Fig 13: Identifying Vehicle Speed Sensor & Back Lamp Switch
      G04801957Courtesy of HYUNDAI MOTOR CO.
    3. Install the transaxle control cable (A).

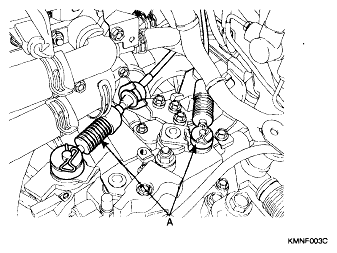

      Fig 14: Identifying Transaxle Control Cable
      G04801956Courtesy of HYUNDAI MOTOR CO.
    4. Install the clutch release cylinder (A).

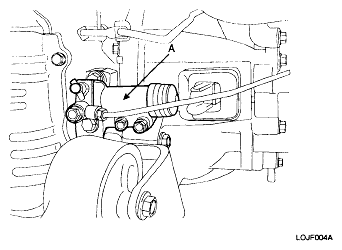

      Fig 15: Identifying Clutch Release Cylinder
      G04801955Courtesy of HYUNDAI MOTOR CO.

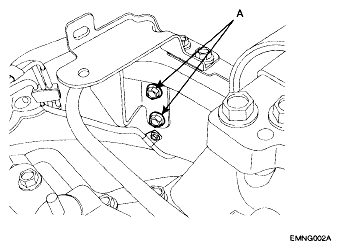

    5. Install the two bolts (A) of the bracket holding the flexible hose.
      Fig 16: Identifying Flexible Hose Bracket Bolts
      G04801954Courtesy of HYUNDAI MOTOR CO.
    6. Install the tube bracket (A) from the transaxle.

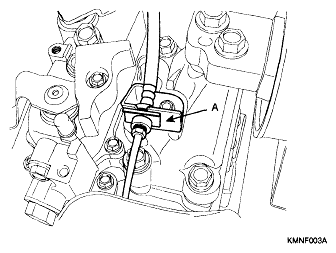

      Fig 17: Identifying Tube Bracket
      G04801953Courtesy of HYUNDAI MOTOR CO.
  21. Install the ground cable to transaxle (A).

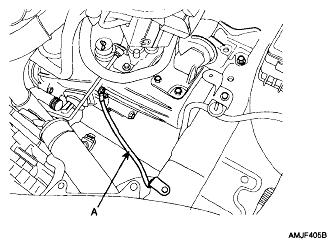

    Fig 18: Identifying Ground Cable
    G04801952Courtesy of HYUNDAI MOTOR CO.
  22. Install the battery tray (A).

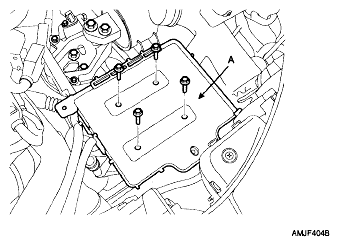

    Fig 19: Identifying Battery Tray Bolts
    G04801951Courtesy of HYUNDAI MOTOR CO.

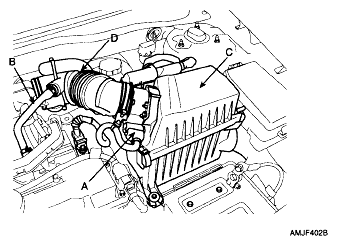

  23. Install the intake air hose and air cleaner assembly.
    1. Install the air cleaner element and lower cover (C).
    2. Connect the ECM connector (A, B).
    3. Install the intake air hose and air cleaner upper cover (C).
      Fig 20: Identifying ECM Connector & Intake Air Hose
      G04801989Courtesy of HYUNDAI MOTOR CO.
    4. Connect the air cleaner hose (D) from the bleeder hose (B).
    5. Connect the air flow sensor connector (A).

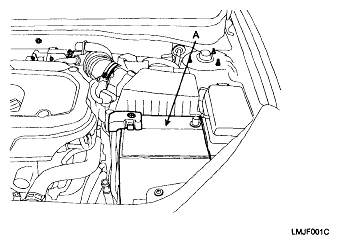

  24. Install the battery (A) after installing the battery terminal.
    Fig 21: Identifying Battery Terminal
    G04801948Courtesy of HYUNDAI MOTOR CO.
