Home >> Hyundai >> 2007 >> Accent GLS, Standard >> Repair and Diagnosis >> Suspension >> Rear Suspension System >> Shock Absorber >> Components

Shock Absorber: Components

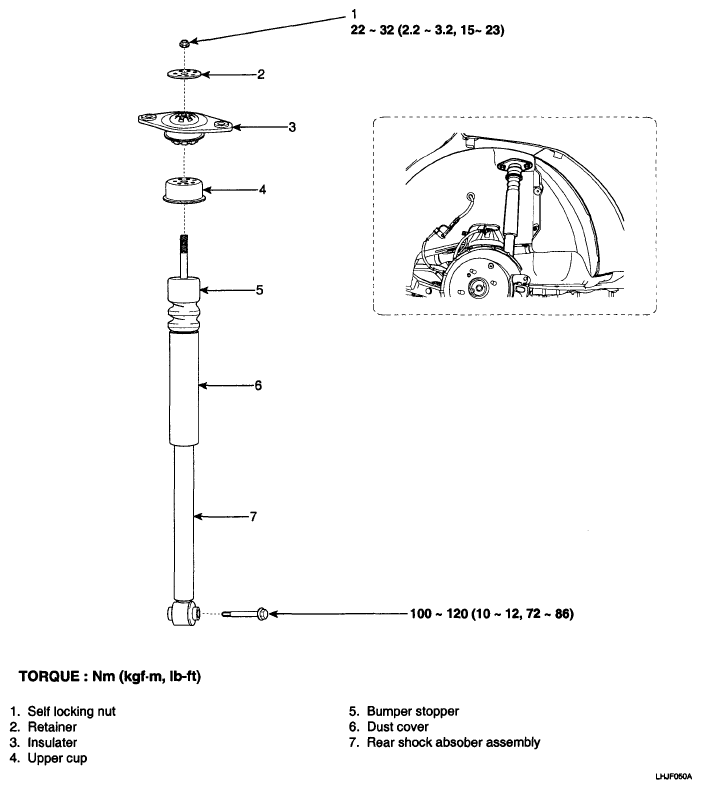

Fig 1: Shock Absorber Replacement Components With Torque Specifications

G04802369

Courtesy of HYUNDAI MOTOR CO.
