Rear Coil Spring: Installation

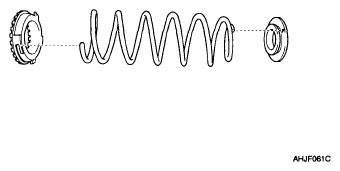

Install the upper and lower pads on the coil spring by aligning the grooves on the pads.

Fig 1: Identifying Upper & Lower Pads
Courtesy of HYUNDAI MOTOR CO.
Place the coil spring (A) with the pads on the torsion axle beam and support it with a jack.

Fig 2: Identifying Rear Coil Spring Tension
Courtesy of HYUNDAI MOTOR CO.

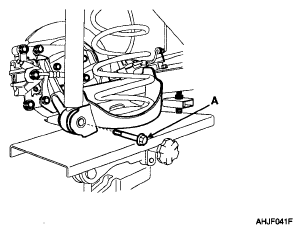

Install the rear shock absorber mounting bolt (A) by lifting the rear torsion axle beam.
Tightening torque Nm (kgf.m, lb-ft):

100 ~ 120 Nm (10 ~ 12 kgf.m, 72 ~ 86 lb-ft)

Fig 3: Identifying Rear Shock Absorber Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.

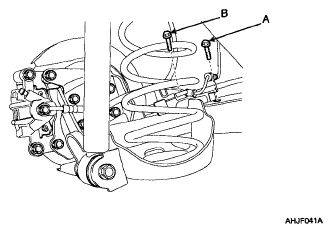

Install the wheel speed sensor wire bracket bolt (A) and the brake pressure hose bracket bolt (B).
Tightening torque Nm (kgf.m, lb-ft):

Brake pressure hose bracket; 9 ~ 14 Nm (0.9 ~ 1.4 kgf.m, 6 ~ 10 lb-ft)

Speed sensor wire bracket; 7 ~ 11 Nm (0.7 ~ 1.1 kgf.m, 5 ~ 7 lb-ft)

Fig 4: Identifying Wheel Speed Sensor Bracket Bolt & Parking Brake Wire Bracket Bolt
Courtesy of HYUNDAI MOTOR CO.
