Home >> Hyundai >> 2007 >> Accent GLS, Standard >> Repair and Diagnosis >> Steering >> Mechanical Power Steering System >> Power Steering Gear Box >> Components

Power Steering Gear Box: Components

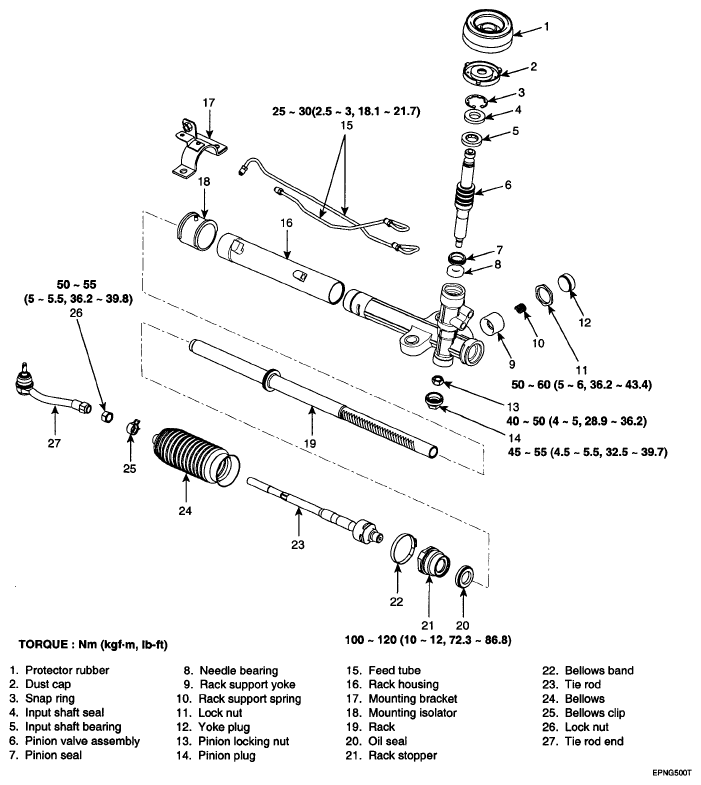

Fig 1: Power Steering Gear Box Replacement Components With Torque Specifications

G04802431

Courtesy of HYUNDAI MOTOR CO.
