Fluid Leaks Inspection

WARNING: This page is about a different variant/trim than selected.

Check for leaks from the transmission. If there are leaks, it is necessary to repair or replace O-ring, seal packings, oil seals, plugs or other parts.

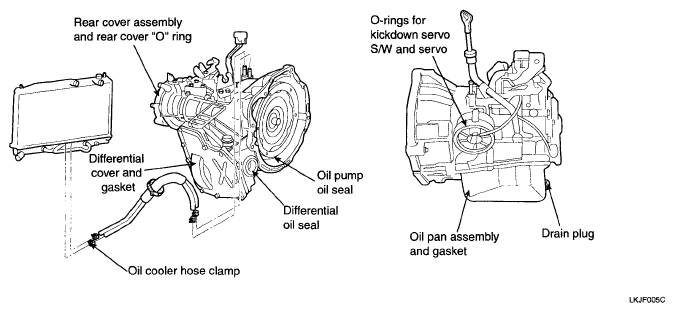

Fig 1: Identifying Fluid Leaks Points In Transmission
G04802057Courtesy of HYUNDAI MOTOR CO.
