Automatic Transaxle Hydraulic Circuit: Lock

WARNING: This page is about a different variant/trim than selected.

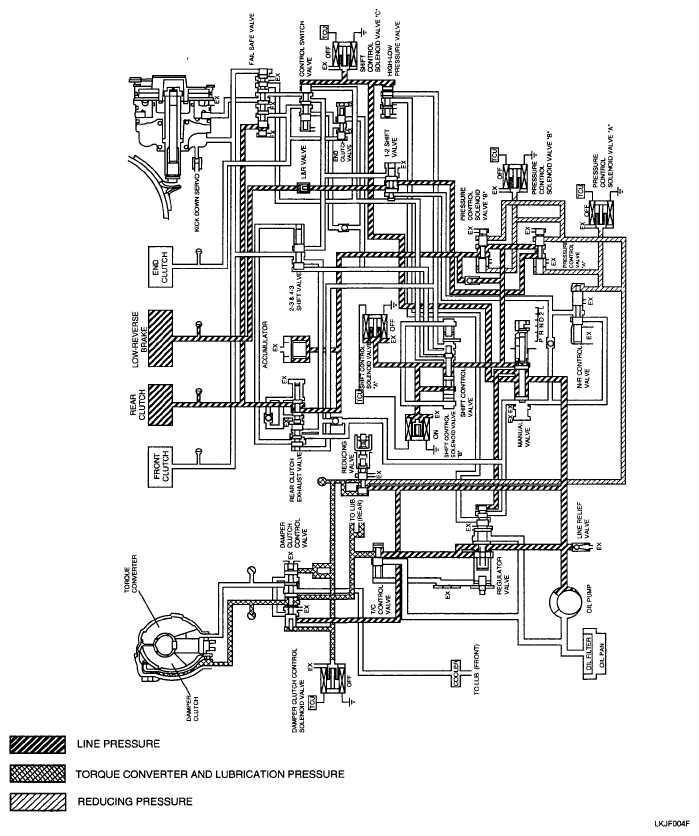

Fig 1: Automatic Transaxle Hydraulic Circuit Diagram - Lock
G04802052Courtesy of HYUNDAI MOTOR CO.
