Section 1 (Automatic Transaxle System (A4AF3))
>>
Automatic Transaxle System
>>
DTC P0716 Input Speed Sensor Rationality
>>
Schematic Diagram
Schematic Diagram
WARNING:
This page is about a different variant/trim than selected.

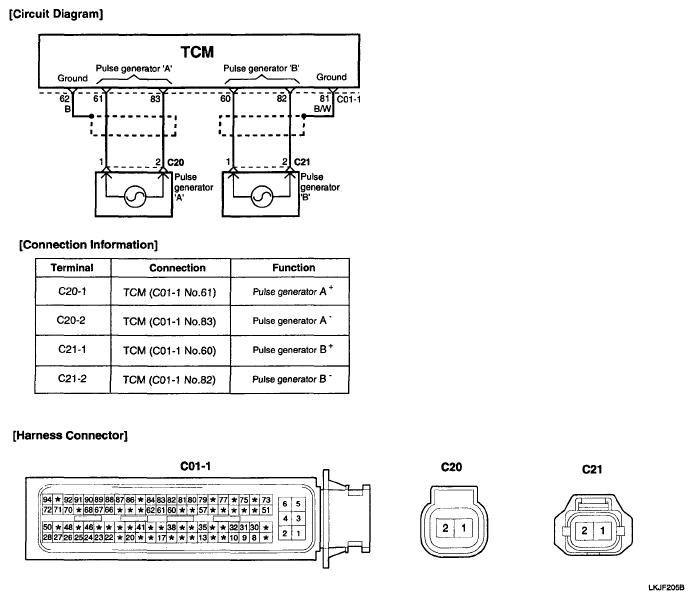

Fig 1: Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
