Automatic Transaxle: Component(1): Component(6)

WARNING: This page is about a different variant/trim than selected.

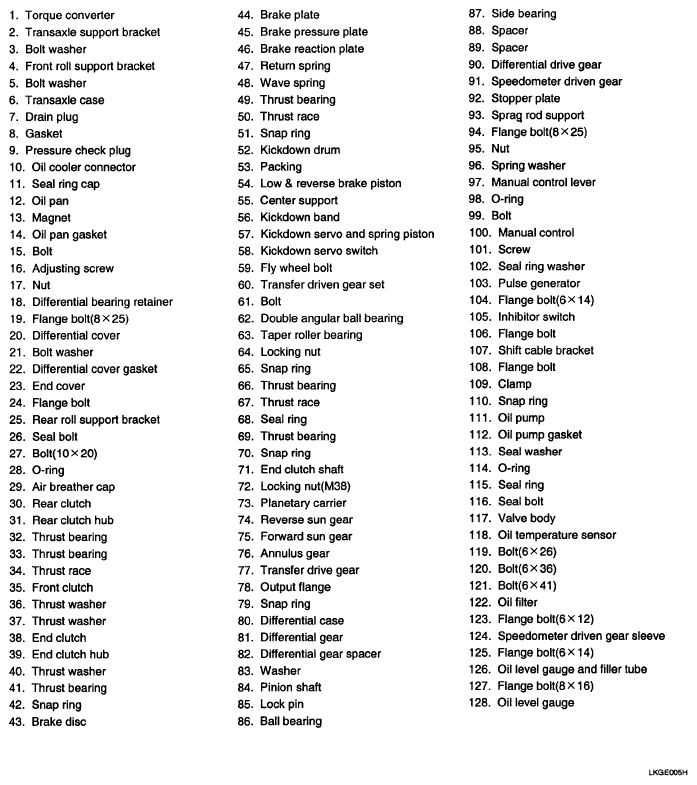

Fig 1: Identifying Automatic Transaxle Components
G04802152Courtesy of HYUNDAI MOTOR CO.
