Automatic Transaxle: Component(1): Component(3)

WARNING: This page is about a different variant/trim than selected.

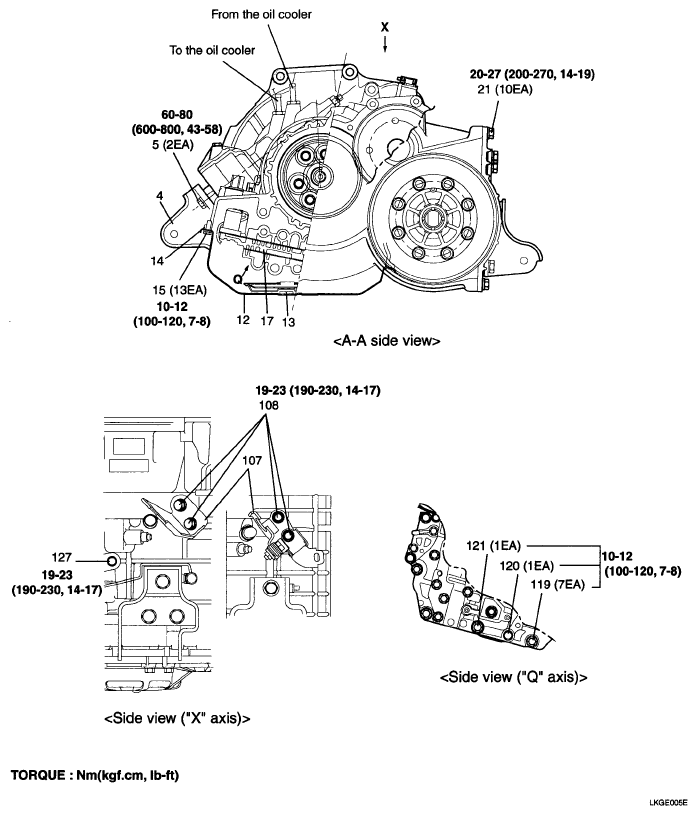

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (3 Of 6)
G04802149Courtesy of HYUNDAI MOTOR CO.
