Blower Resistor: Inspection

WARNING: This page is about a different car, the 2006 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Measure terminal-to-terminal resistance of the blower resistor.

If measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)

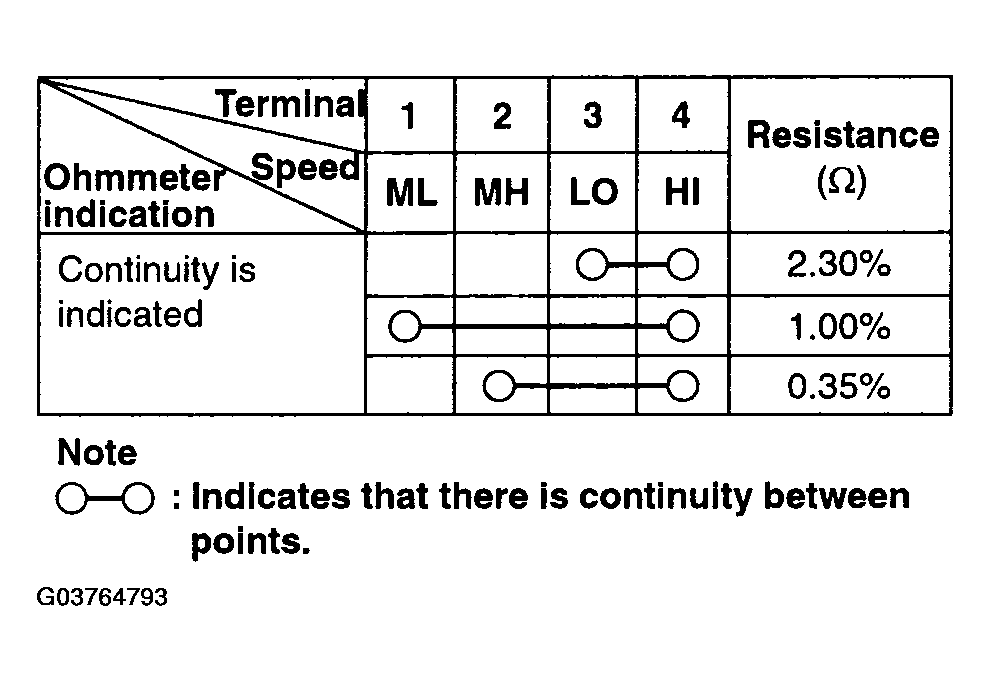

Fig 1: Blower Resistor Resistance Chart
G03764793Courtesy of HYUNDAI MOTOR CO.
