Trunk Lid Release Handle Replacement

  1. Remove the handle cover(A).

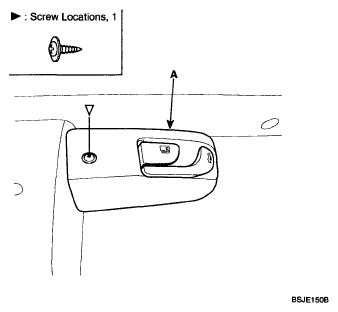

    Fig 1: Identifying Handle Cover
    G04802680Courtesy of HYUNDAI MOTOR CO.
  2. After loosening the mounting bolts(C).
    Fig 2: Mounting Bolts With Torque Specification
    G04802681Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the release handle cable (A) and fuel fill door release handle cable (B) then remove the release handle(C).

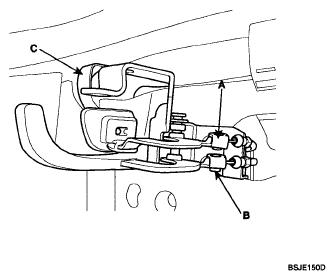

    Fig 3: Identifying Handle Cable & Handle
    G04802682Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the trunk lid latch cable is connected properly.
    • Make sure the trunk lid opens properly and locks securely.
