Fuel Fill Door Replacement

  1. Loosen the bolts, then remove the fuel filler door (A).

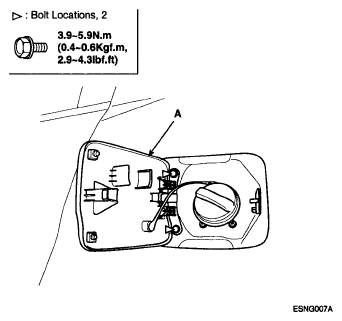

    Fig 1: Fuel Filler Door With Torque Specification
    G04802684Courtesy of HYUNDAI MOTOR CO.
  2. Installation is the reverse of removal.
    NOTE:
    • Make sure the fuel fill door opens properly and locks securely.
