Trunk Lid: Adjustment

  1. After loosening the trunk lid hinge (A) mounting bolt, adjust the hood by moving it up or down, or right or left.
  2. Adjust the trunk lid height by turning the trunk lid overslam bumpers (B).
  3. After loosening the trunk lid latch (C) mounting bolts, adjust the trunk lid latch by moving it up or down, or right or left.

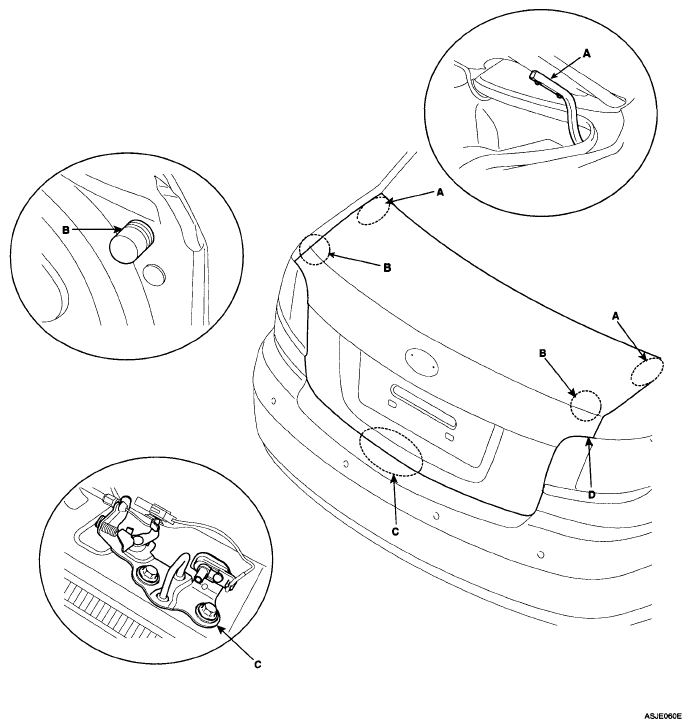

    Fig 1: Identifying Trunk Lid Latch & Trunk Lid Overslam Bumpers
    G04802686Courtesy of HYUNDAI MOTOR CO.
