Sunroof Assembly Replacement
- Remove the follows parts.
- Front and rear door scuff trim(See INTERIOR TRIM ).
- Front, center and rear pillar trim(See INTERIOR TRIM ).
- Headlining(See ROOF TRIM ).
- Sunroof glass(See SUNROOF ASSEMBLY REPLACEMENT ).

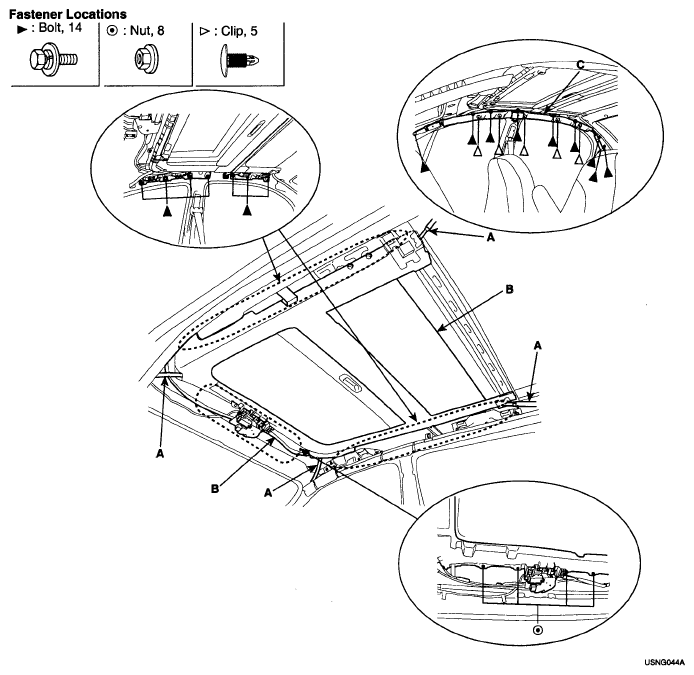

- Disconnect the drain tubes (A).
- After loosening the mounting bolts and nuts, remove the sunroof assembly (B).NOTE:
- Take care not to scratch the interior trims and other parts.
- Installation is the reverse of removal.
