Out Side Handle Replacement

Remove the rear door trim(See REAR DOOR TRIM REPLACEMENT ).
Remove the rear door trim seal.
Remove the safety lock rod cover(A).

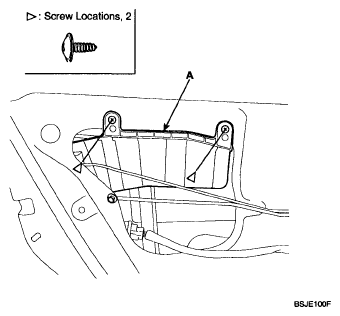

Fig 1: Identifying Safety Lock Rod Cover
Courtesy of HYUNDAI MOTOR CO.
After disconnect the out side handle rod(A), loosen the outside handle mounting bolts.

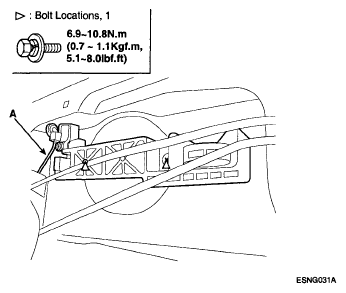

Fig 2: Identifying Out Side Handle Rod With Torque specification
Courtesy of HYUNDAI MOTOR CO.
Push the outside handle base forward(D) and remove the outside handle(C)

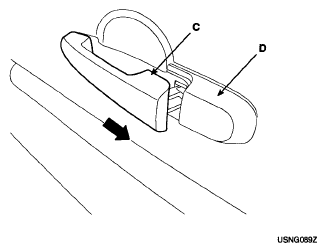

Fig 3: Identifying Outside Handle Base Forward & Outside Handle
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure of connectors is plugged in properly and each rod is connected securely.
- Make sure the door lock and opens properly.
- If the door trim seal is damaged, it must be replaced.
