Inside Handle Replacement

  1. Remove the rear door trim(See REAR DOOR TRIM REPLACEMENT  ).
  2. Loosen the inside handle (A) mounting screw. Push the inside handle rearward to disconnect from the door module.
    Fig 1: Identifying Inside Handle
    G04802724Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the safety lock rod and (A) inside handle rod(B), remove the inside handle(C).

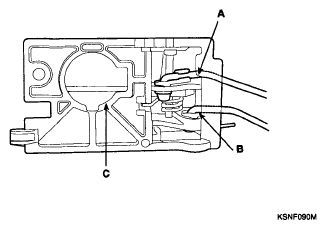

    Fig 2: Identifying Safety Lock Rod & Inside Handle Rod
    G04802725Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the door lock and open properly.
