Speaker Replacement

  1. Remove the front door trim(See DOOR TRIM REPLACEMENT  ).
  2. After disconnect the speaker mounting screw and connector(A), remove the speaker(B).

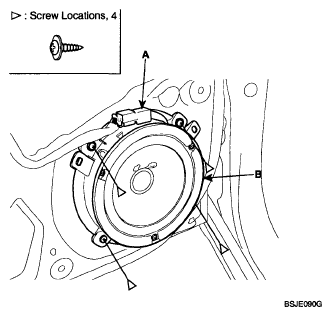

    Fig 1: Identifying Connector & Speaker
    G04802695Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
