Front Door Latch Replacement
- Remove the door trim(See DOOR TRIM REPLACEMENT
).
- Remove the door trim seal.
- Remove the inside handle(See INSIDE HANDLE REPLACEMENT
).
- Remove the channel(See REAR CHANNEL REPLACEMENT
).

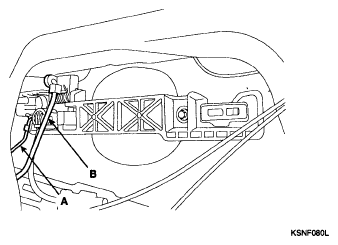

- Disconnect the lock rod(A), out side handle rod(B).
Courtesy of HYUNDAI MOTOR CO.

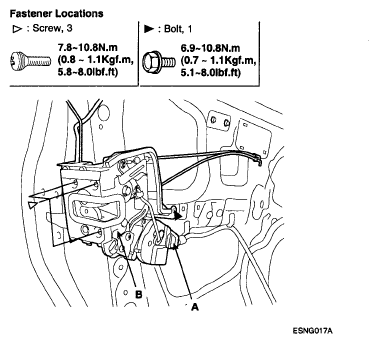

- After disconnect the connector(A), loosen the mounting bolts. Remove the latch assembly(B).
Courtesy of HYUNDAI MOTOR CO.
- Installation is the reverse of removal.
NOTE:
- Roll the glass up down to see if it move freely without binding.
- Make sure the door lock and opens properly.
- If the door trim seal is damaged, it must be replaced.
