Door Regulator Replacement

  1. Remove the door trim(See DOOR TRIM REPLACEMENT  ).
  2. Remove the door trim seal.
  3. Remove the window glass(See GLASS REPLACEMENT  ).
  4. After disconnecting window motor connector(B), loosen the door regulator mounting nuts and window motor mounting nuts, remove the door regulator(A).

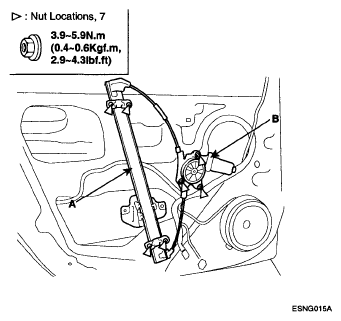

    Fig 1: Window Motor Connector & Door Regulator With Torque Specification
    G04802696Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
    NOTE:
    • If the door trim seal is damaged, it must be replaced.
