Engine Block: Component

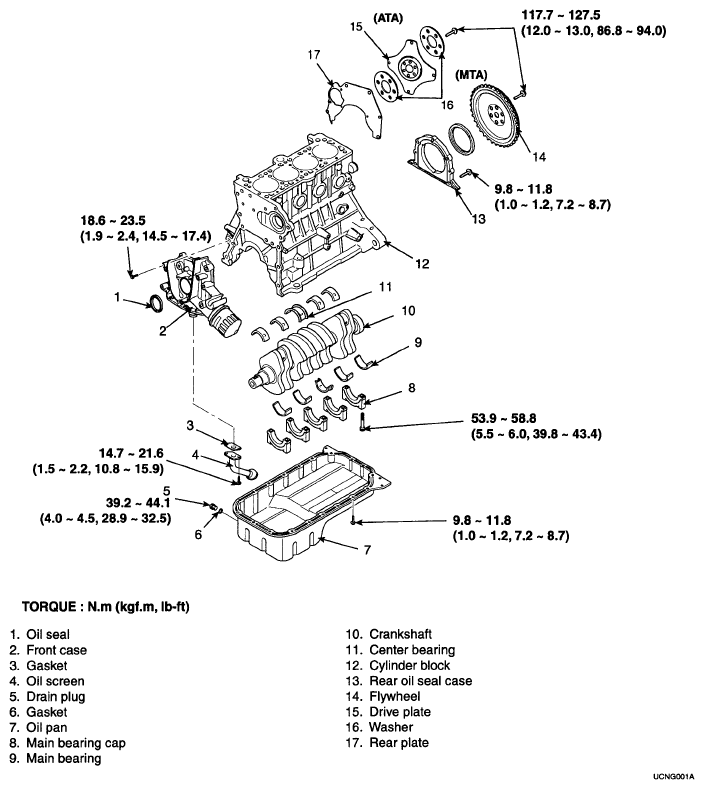

Fig 1: Engine Block Replacement Components With Torque Specifications (1 Of 2)
G04801269Courtesy of HYUNDAI MOTOR CO.

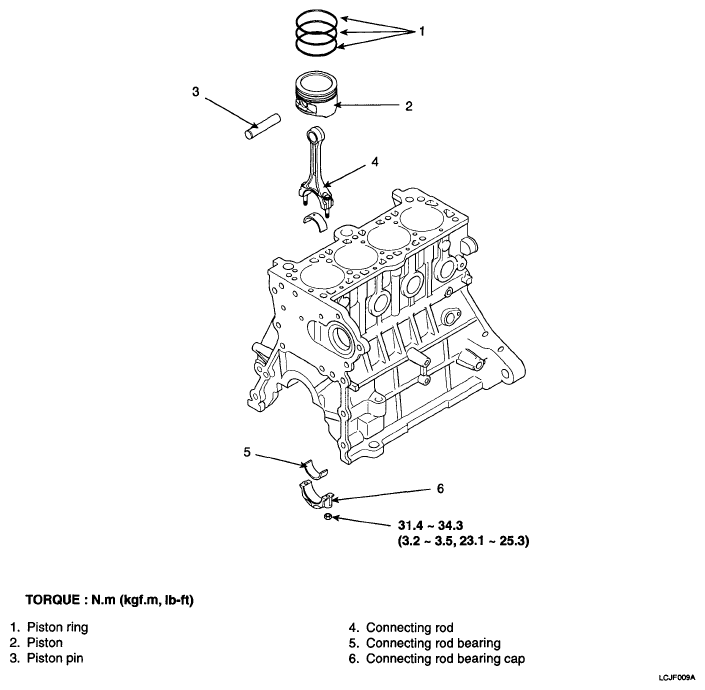

Fig 2: Engine Block Replacement Components With Torque Specifications (2 Of 2)
G04801270Courtesy of HYUNDAI MOTOR CO.
