Transmitter Code Registration

Connect the DLC cable of hi-scan to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on hi-scan.

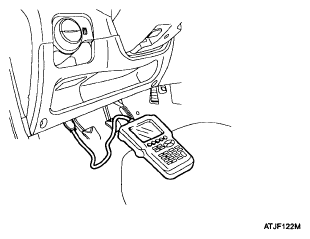

Fig 1: Connecting DLC Cable Of HI-SCAN To Data Link Connector
Courtesy of HYUNDAI MOTOR CO.
Select the vehicle model and then do "CODE SAVING".

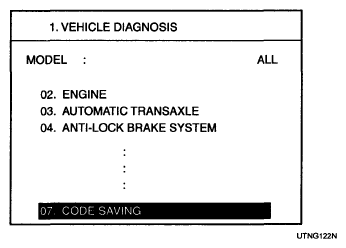

Fig 2: Identifying HI-Scan Display - Code Saving
Courtesy of HYUNDAI MOTOR CO.
After selecting "CODE SAVING" menu, push "ENTER" key, then the screen will be shown as below.

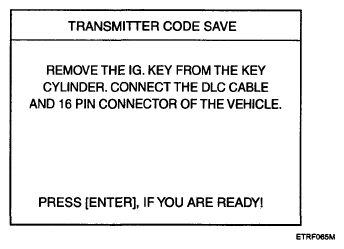

Fig 3: Identifying HI-Scan Display - Transmitter Code Save
Courtesy of HYUNDAI MOTOR CO.
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

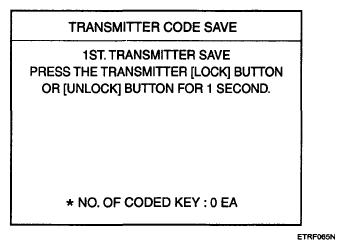

Fig 4: Identifying HI-Scan Display - Transmitter Code Save
Courtesy of HYUNDAI MOTOR CO.

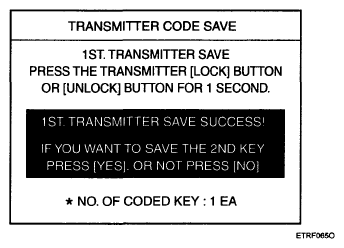

Fig 5: Identifying HI-Scan Display - Transmitter Code Save
Courtesy of HYUNDAI MOTOR CO.

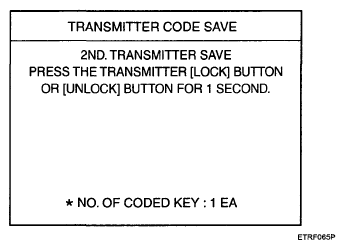

Fig 6: Identifying HI-Scan Display - Transmitter Code Save
Courtesy of HYUNDAI MOTOR CO.

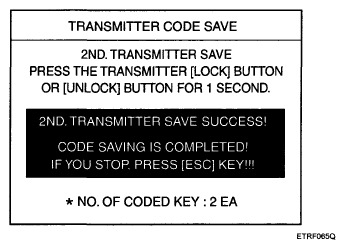

Fig 7: Identifying HI-Scan Display - Transmitter Code Save
Courtesy of HYUNDAI MOTOR CO.
