Front Stabilizer Bar: Installation

Install the bushing (B) on the stabilizer bar (A).

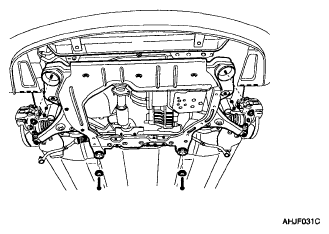

Fig 1: Identifying Bushing On Stabilizer Bar
Courtesy of HYUNDAI MOTOR CO.

NOTE: Bring clamp (C) of stabilizer bar (A) into contact with bushing (B).
Install the bracket on the bushing (B).
After tightening the bolts of the bushing bracket temporarily, install the bushing bracket on the opposite side.
Tightening torque:

45 ~ 55 Nm (4.5 ~ 5.5 Kgf.m, 32 ~ 39 lb-ft)
Install the six subframe mounting bolts, then the two engine mounting bolts (A, B).
Tightening torque:

Engine mounting; 50 ~ 65 Nm (5 ~ 6.5 Kgf.m, 36 ~ 47 lb-ft)

Subframe mounting; 95 ~ 120 Nm (9.5 ~ 12 Kgf.m, 68 ~ 86 lb-ft)

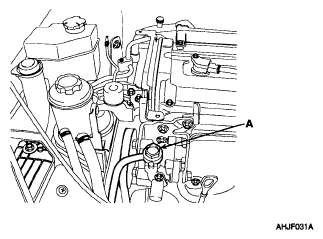

Fig 2: Identifying Engine Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

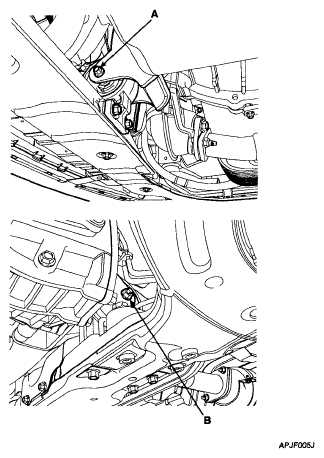

Fig 3: Identifying Sub-Frame Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Install the connecting bolt (A) between the steering universal joint assembly and the pinion assembly.

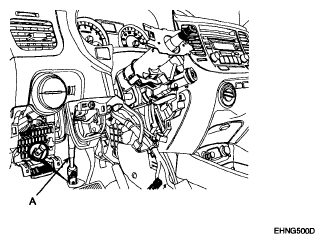

Fig 4: Identifying Steering Universal Joint Connecting Bolt
Courtesy of HYUNDAI MOTOR CO.
Install the pressure pipe mounting bolt (A).
Tightening torque:

55 ~ 65 Nm (5.5 ~ 6.5 Kgf.m, 39 ~ 47 lb-ft)

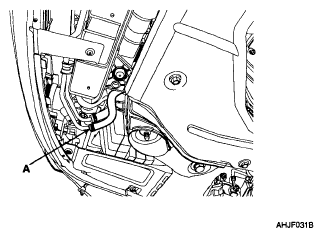

Fig 5: Identifying Pressure Pipe Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Connect between the return tube and hose (A).

Fig 6: Identifying Return Hose & Tube
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Be sure to connect between a tube and a hose as shown in the illustration.

Fig 7: Identifying Tube & Hose Connecting Dimension
Courtesy of HYUNDAI MOTOR CO.
Install the two bolts (A) for the lower arm ball joint.
Tightening torque:

100 ~ 120 Nm (10 ~ 12 Kgf.m, 72 ~ 86 lb-ft)

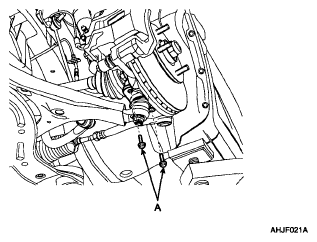

Fig 8: Identifying Ball Joint Assembly Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Install the nut (B) on the stabilizer bar link (A).
Tightening torque:

35 ~ 45 Nm (3.5 ~ 4.5 Kgf.m, 25 ~ 32 lb-ft)

Fig 9: Identifying Stabilizer Bar Link
Courtesy of HYUNDAI MOTOR CO.
Install the tie rod end on the knuckle.
Install the front wheel and tire (A) on the front hub (B).
Tightening torque:

90 ~ 110 Nm (9 ~ 11 Kgf.m, 65 ~ 79 lb-ft)

Fig 10: Identifying Front Wheel & Tire
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Be careful not to do damage the hub bolts (C) then install the front wheel and tire (A).
Refill the power steering fluid.
CAUTION: After installation, bleed the air in the power steering system. (refer to AIR BLEEDING )
