Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
ESC (Electronic Stability Control) System
>>
ESC Circuit Diagram
ESC Circuit Diagram
Refer to
ANTI-LOCK BRAKES
in SYSTEM WIRING DIAGRAMS article.

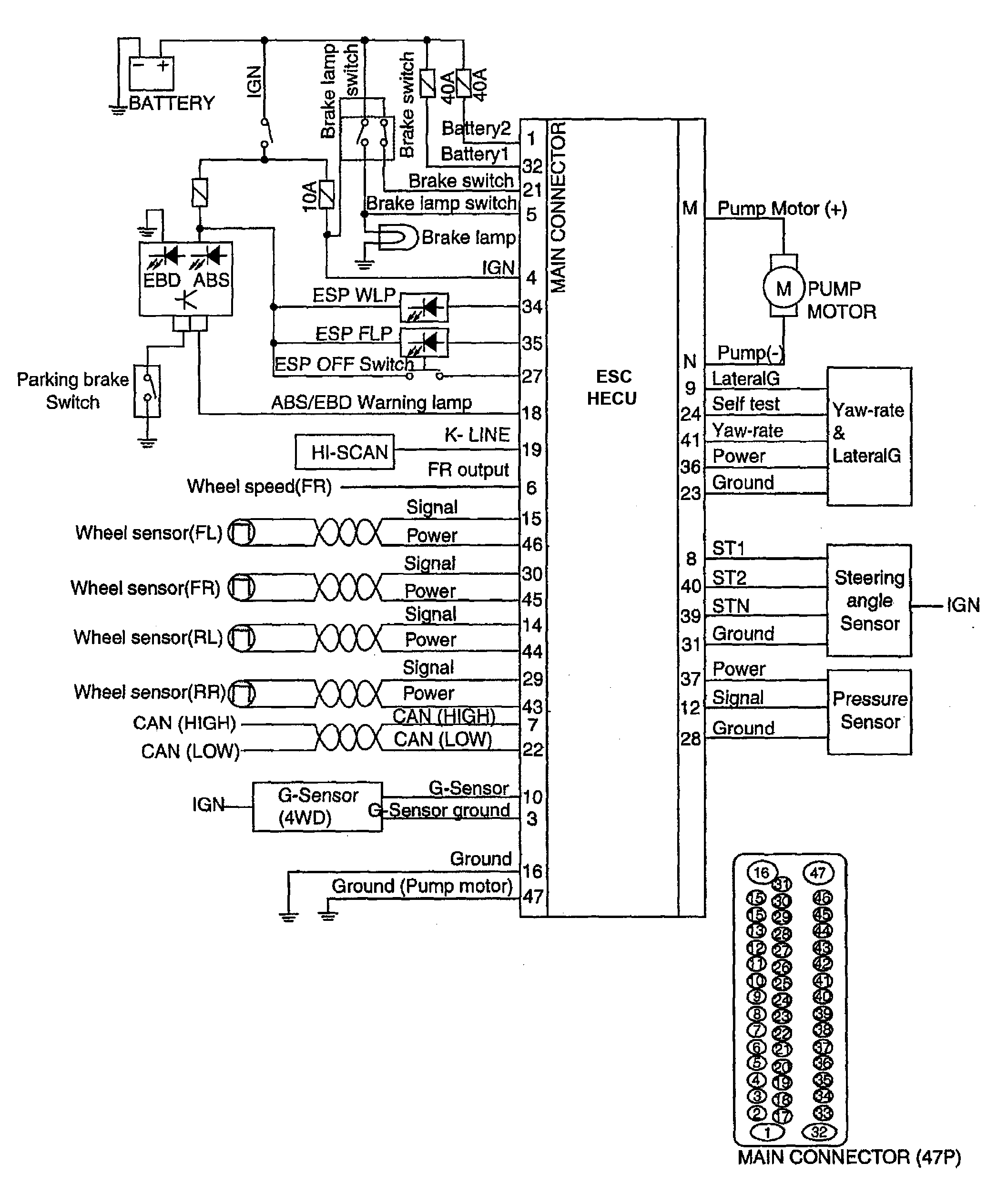

Fig 1: ESC Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
