Room Lamp Assembly Connector End View

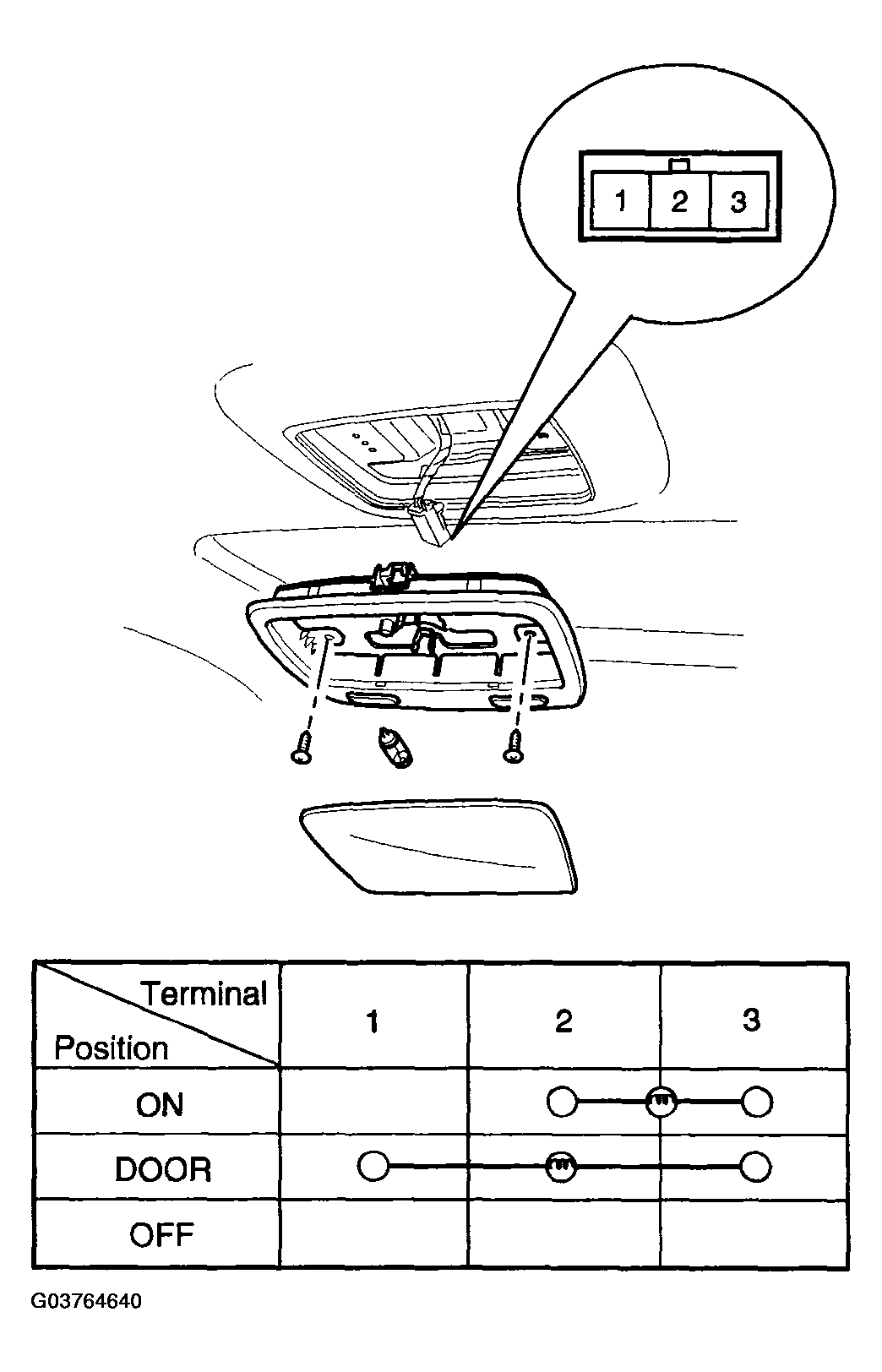

Fig 1: Room Lamp Assembly Connector End View

G03764640

Courtesy of HYUNDAI MOTOR AMERICA
